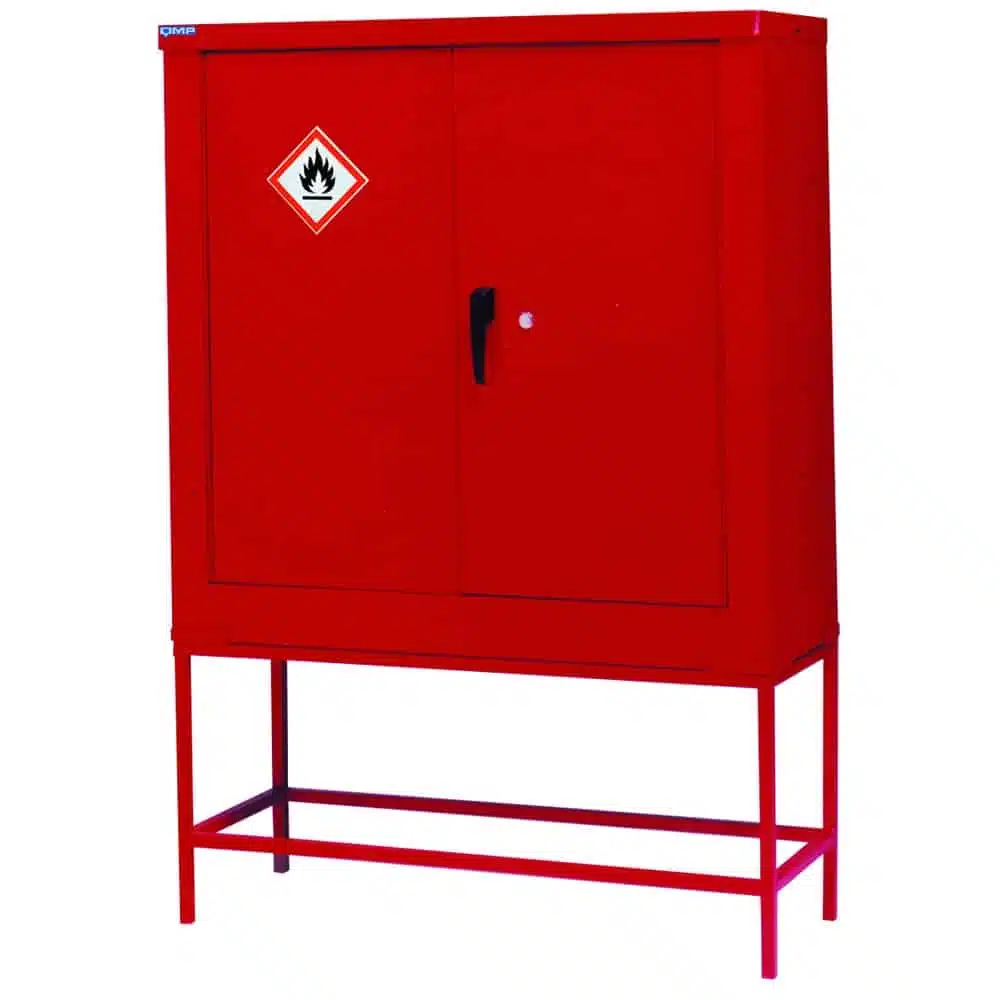

The Petroleum & Flammable Liquid Storage Cupboard (1200 x 900 x 610mm) is a heavy-duty, high-security welded steel cupboard for petrol, solvents and other flammable liquids, supporting compliance with DSEAR 2002. Built from 1.2mm seam-welded steel and secured by a seven-lever Lowe & Fletcher anti-pick safe lock with espagnolette locking, it features a liquid-tight 14-litre sump with drainage plug and 2 adjustable galvanised spill-retaining shelves. Supplied with a stand raising it 543mm off the floor, powder-coated red, and manufactured to order in the UK.
Key Features
- Seven-lever anti-pick safe lock: a Lowe & Fletcher 2802 anti-pick safe lock with espagnolette locking secures both doors into the carcass
- Fully welded construction: 1.2mm seam-welded steel with full-length piano hinges, concealed fixings and a retaining rail to prevent door removal
- Drainable integral sump: a fully welded liquid-tight sump rated to 14 litres with a plug for easy, safe drainage
- Supplied with a stand: includes a stand that raises the cupboard 543mm off the floor, with an adjustable foot for uneven surfaces
- Adjustable spill-retaining shelves: galvanised, height-adjustable shelves with raised lips for spill management
- Red germ-guard finish: powder-coated red (RAL 3003) with a germ-guard antibacterial compound, warning labels supplied
- Reaction to Fire classified: classified to EN 13501-1, manufactured under ISO 9001:2015
Technical Specifications
| External Dimensions (H × W × D) |
1200 × 900 × 610mm |
| Number of Shelves |
2 |
| Integral Sump Capacity |
14 litres (with drainage plug) |
| Lock |
Seven-lever Lowe & Fletcher 2802 anti-pick safe lock with espagnolette locking |
| Hinges |
Full-length piano hinges with concealed fixings and retaining rail |
| Construction |
1.2mm seam-welded mild steel |
| Shelves |
Adjustable, spill-retaining galvanised |
| Stand |
Supplied with a stand (raises the cupboard 543mm) |
| Colour |
Red (RAL 3003) |
| Finish |
Epoxy polyester powder coat with Germ Guard antibacterial technology |
| Weight |
102.5kg |
| Fire Classification |
Reaction to Fire, EN 13501-1 |
| Quality System |
ISO 9001:2015 |
| Delivery |
Manufactured to order (extended lead time) |
UK Manufactured | Fire Classified EN 13501-1
This product is manufactured to order in the UK from 1.2mm seam-welded mild steel. Petroleum and flammable liquid cupboards of this type help employers store flammable and petroleum-based liquids safely and securely, supporting compliance with the Dangerous Substances and Explosive Atmospheres Regulations 2002 (DSEAR) and petroleum storage good practice. The powder-coated steel is classified for Reaction to Fire in accordance with EN 13501-1 and produced under a quality system certified to ISO 9001:2015. Warning labels are supplied as standard. As a manufactured-to-order item this product is subject to an extended lead time.
More About This Product
The Petroleum & Flammable Liquid Storage Cupboard (1200 x 900 x 610mm) is a heavy-duty, high-security welded steel cupboard for storing petrol, solvents and other flammable liquids, supporting compliance with the Dangerous Substances and Explosive Atmospheres Regulations 2002 (DSEAR). Built from 1.2mm seam-welded steel with full-length piano hinges and concealed fixings, it is secured by a seven-lever Lowe & Fletcher anti-pick safe lock with espagnolette locking. A fully welded liquid-tight integral sump rated to 14 litres has a drainage plug for easy emptying, and 2 adjustable galvanised spill-retaining shelves organise the interior. The cupboard is supplied with a stand that raises it 543mm off the floor. Powder-coated red with Germ Guard antibacterial technology and classified for Reaction to Fire under EN 13501-1. Manufactured to order in the UK.
Suitable Applications
Petroleum and Flammable Liquid Cupboards suit garages, workshops, depots, laboratories and industrial sites wherever petrol, solvents, fuels and other flammable liquids must be stored securely and away from ignition sources. The welded construction, high-security safe lock, integral drainable sump and clearly marked red finish support the control measures expected under DSEAR and your fire risk assessment.
See also the related range.
How to Use the Petroleum and Flammable Liquid Cupboard
- Site the cupboard on a firm, level floor in a well-ventilated area away from heat, sparks, naked flames and other ignition sources.
- Adjust the galvanised shelves to suit your containers, ensuring each shelf is fully seated on its supports.
- Store flammable liquids in their original, correctly labelled, sealed containers.
- Keep only the quantities permitted by your DSEAR and fire risk assessments, and keep incompatible substances apart.
- Use the sump drainage plug to safely empty any retained liquid using a suitable absorbent and disposal route.
- Lock the cupboard after every use and restrict key access to authorised, trained personnel only.
Warning:
Flammable and petroleum liquids are dangerous substances. Keep away from all ignition sources, store only sealed, correctly labelled containers and observe the quantities permitted by your DSEAR and fire risk assessments. Always consult the safety data sheet (SDS) for each substance.
Safety Information
- Carry out a DSEAR risk assessment before storing flammable or petroleum liquids and follow the control measures it identifies.
- Keep the cupboard away from heat, sparks, naked flames and other ignition sources.
- Ensure the storage area is well ventilated and store only authorised quantities.
- Keep all liquids in their original, correctly labelled containers with the lids secure.
- Provide and use appropriate personal protective equipment (PPE) and have suitable spill absorbents to hand.
- Keep the cupboard locked when not in use and limit key access to trained, authorised personnel.
Inspection and Maintenance
Clean the paintwork periodically with warm soapy water or a foaming cleaner. Oil the hinges and lock sparingly as required with a light oil (3-in-1 or similar). Inspect the integral sump regularly and drain it via the plug, cleaning out any spillage promptly with a suitable absorbent. Check that warning labels remain legible. Replacement locks and spare keys are available on request.
Frequently Asked Questions
Q: Is a stand included?
Yes. This cupboard is supplied with a stand that raises it 543mm off the floor. Matching replacement stands are also available separately.
Q: Can the sump be drained?
Yes. The integral liquid-tight sump has a drainage plug for easy, safe emptying.
Q: How secure is it?
Very. It is fully welded from 1.2mm steel with full-length piano hinges, concealed fixings and a seven-lever Lowe & Fletcher anti-pick safe lock.
Q: Is it delivered assembled?
Yes. The cupboard is manufactured to order and delivered fully assembled with warning labels supplied.
