Armorgard VoltHub VH16-240

Model VH16-240 | 240V Li-Ion Battery Charging Station | 16 Lockers | F.I.R.E.E. Technology | IP55 Rated

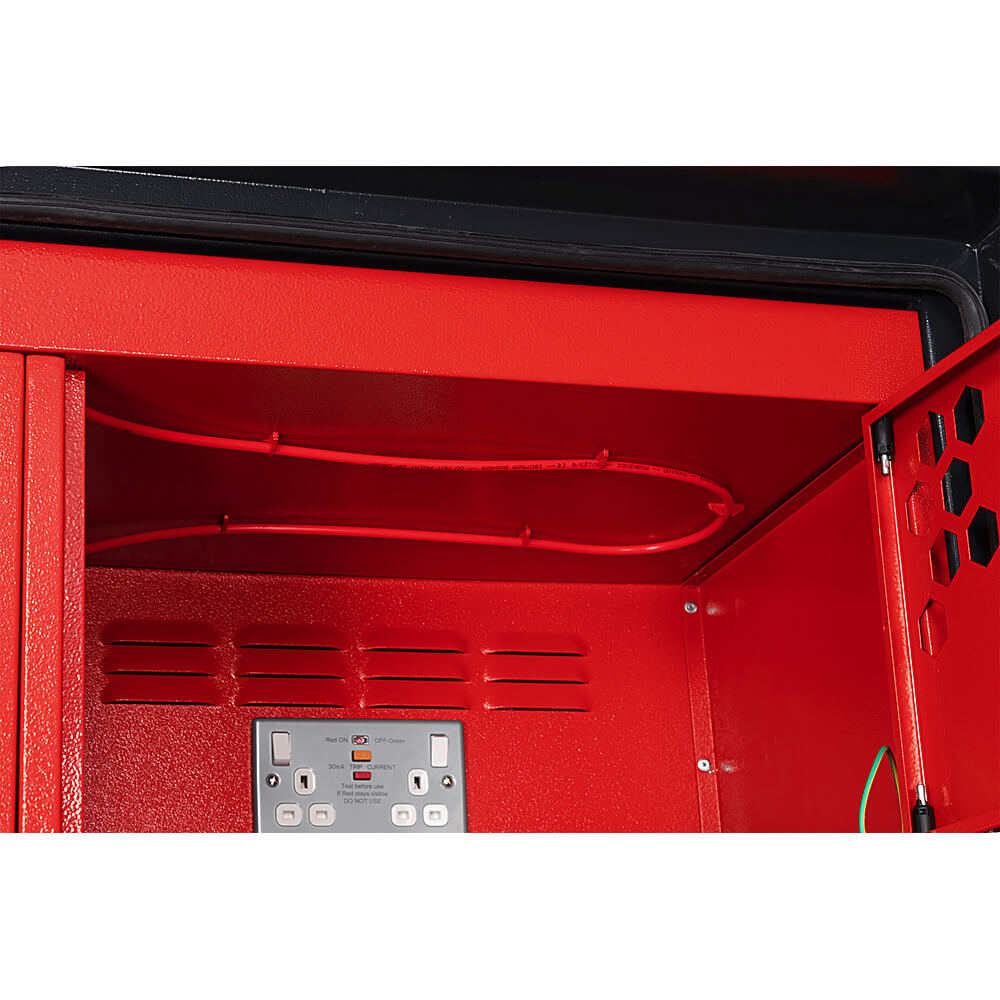

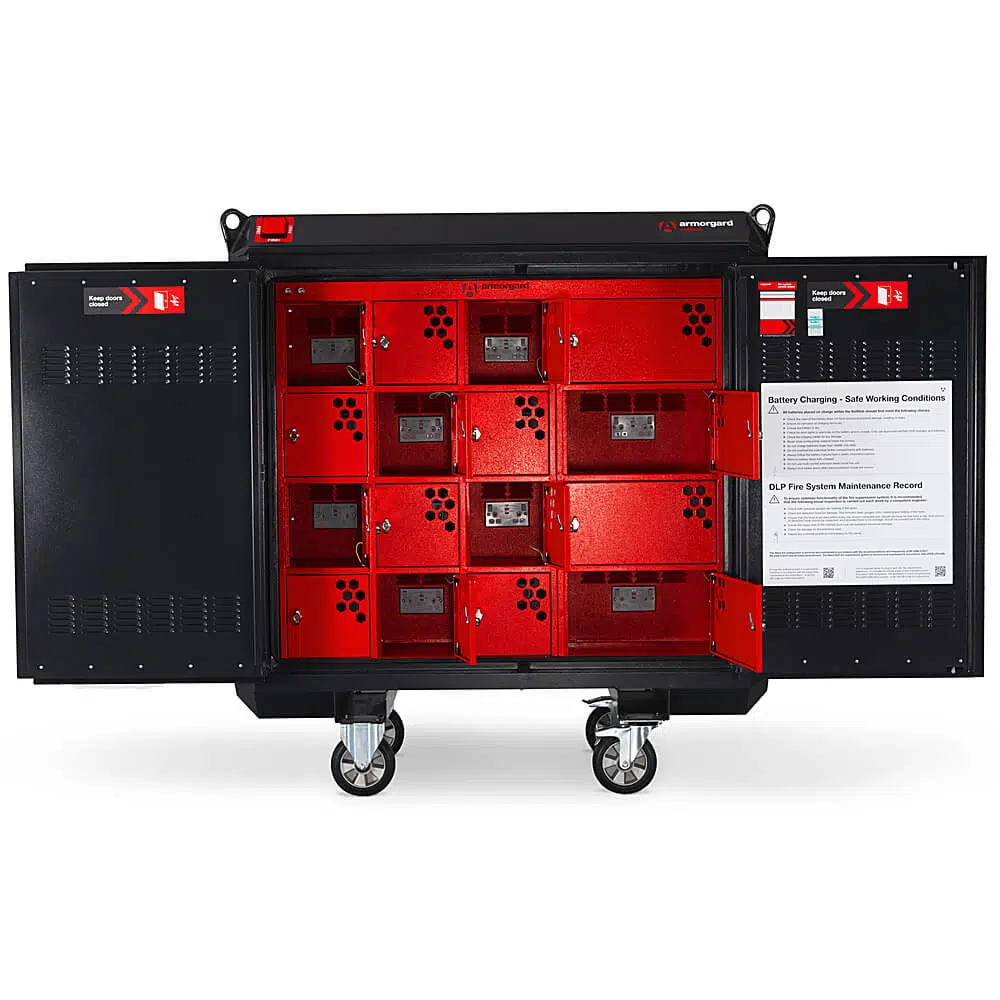

The Armorgard VoltHub VH16-240 is a lithium-ion battery charging station engineered for workshops, warehouses, and sites with standard 240V mains power. This mobile, weatherproof unit safely charges up to 32 batteries at once, combining proactive environmental control with automatic fire suppression to dramatically reduce the risk and consequences of thermal runaway. The VH16-240 features 16 individually lockable compartments, each containing twin 240V UK Type G sockets with integrated RCD protection and test/reset buttons. In the event of a battery fire, the 6-litre DLP fire suppression system targets the source directly, containing and cooling the affected battery to prevent thermal propagation.

Technical Specifications

Key Features

• F.I.R.E.E. Technology (Proactive) - forced negative pressure ventilation, thermostatic heater for optimum charging temperature, power cut-off at 60°C, on/off isolator switch, smoke/gas/humidity sensors for early detection, and critical temperature alarm with red LED and audible beep.
• F.I.R.E.E. Technology (Reactive) - automatic localised 6-litre DLP fire suppression with PFAS-free suppressant, visual fire beacon on roof, audible siren, 12V battery backup for fan and alarms when mains disconnected.
• RCD Protected Sockets - each compartment has individually protected sockets with test/reset buttons. If a charger trips an RCD, only that socket is affected while other compartments continue operating normally.
• Universal Communications Port - SP21 external fire alarm interface with volt-free contacts (NO/NC/common). Compatible with WES, ProLink, Cygnus and most site fire alarm systems.
• IP55 Weatherproof - suitable for indoor or outdoor use. Rear ventilation panel removable for indoor ducting (150mm/6" flange).
• Site Mobility - 200mm extra heavy-duty castors (2 fixed, 2 swivel braked), forklift pockets, pallet truck access, and 4 crane lifting eyes (LOLER certificate required).
• 5-Lever Deadlock Security - robust locking mechanism with 2 keys supplied. Individual lockers are padlockable.

Suitable Applications

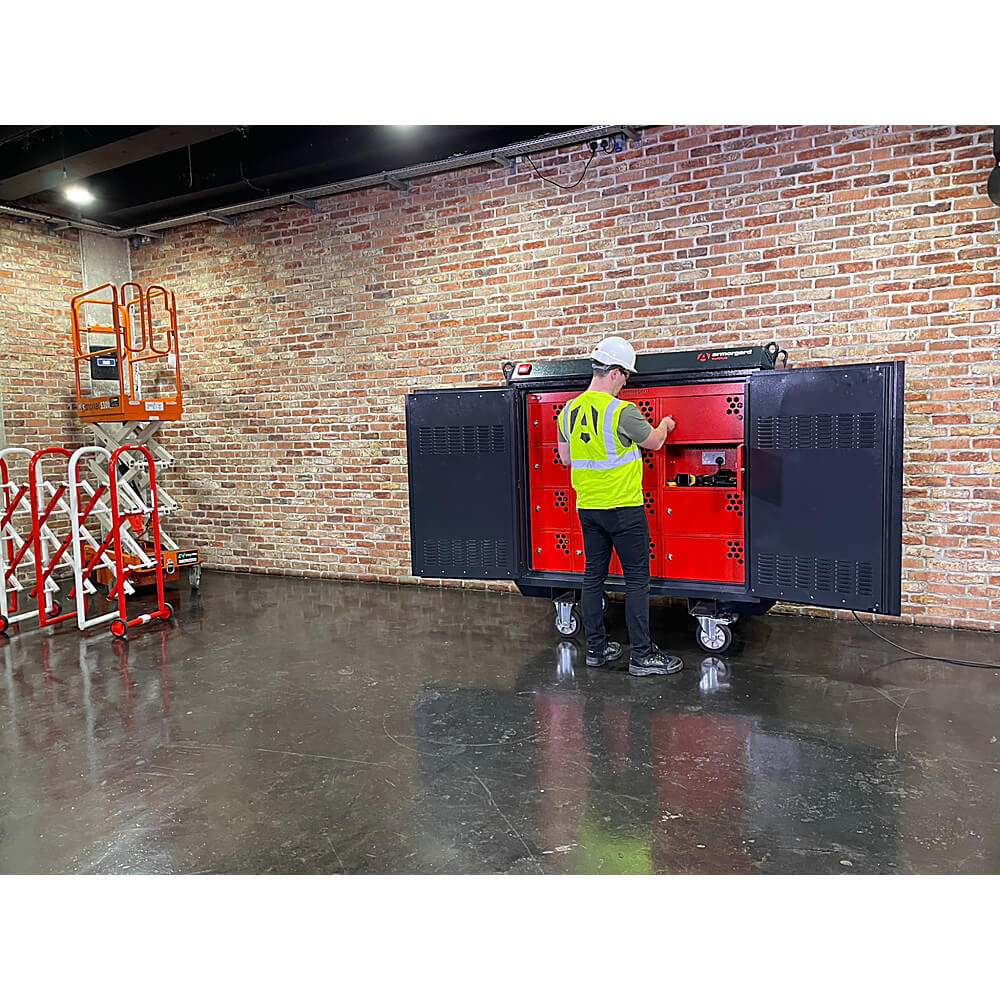

The VoltHub VH16-240 is designed for workshops, warehouses, distribution centres, facilities management, and any location with standard 240V mains power. Typical applications include tool stores, maintenance departments, fleet operations, and central charging hubs where multiple cordless power tool batteries need safe, managed charging. The IP55 rating allows outdoor deployment, taking the fire risk away from buildings. Armorgard have tested the VH16-240 with 36V and 72V batteries exceeding 1000Wh capacity.

How to Use the VoltHub VH16-240

1. Position the VoltHub on level ground, ensuring adequate clearance around all sides for ventilation and emergency access. Lock the swivel castors.
2. Connect the 32A IP67 power inlet to a suitable 240V supply.

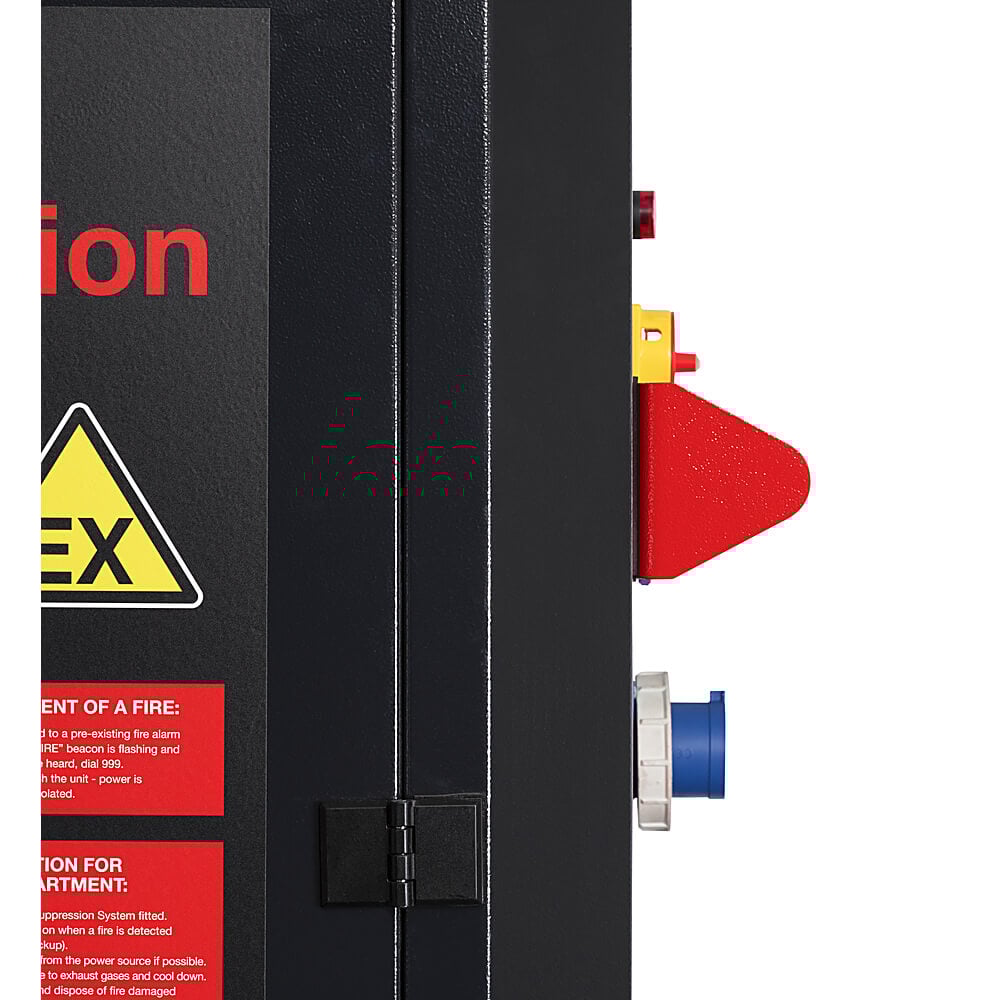

3. Switch on using the isolator switch. The unit will begin climate management automatically.
4. Place batteries and chargers in individual lockers. Do not exceed 350Wh per locker or 40kg load per shelf.
5. Close and lock each locker door. The 5-lever deadlock secures all compartments.
6. Monitor the LED indicators. Green indicates normal operation. Red with audible alarm indicates a critical temperature or fire event.

Warning: The VoltHub must be empty when moving. Lock all doors during transport. Only charge OEM batteries in undamaged condition. Do not exceed 350Wh per locker.

Certification and Compliance

The VoltHub VH16-240 is certified to NTA8133-2021, the Dutch Technical Agreement for safe storage and charging of lithium-ion batteries. It complies with multiple European and British standards including EN 60335-1:2012 (Household appliances safety), EN 60335-2-29:2019 (Battery chargers), EN 60529:1992+A2:2013 (IP rating), and EN 3-7+A1:2007 (Fire extinguishers). The DLP fire suppression system meets LPCB LPS1666 requirements. The unit conforms to the 2014/35/EU Low Voltage Directive and UK Electrical (Safety) Regulations 2008.

Safety Information

• Only charge standard OEM lithium-ion batteries in undamaged condition. Do not charge damaged, swollen, or third-party batteries.
• Do not exceed 350Wh maximum battery capacity per locker.
• Ensure minimum 200mm spacing between batteries within each locker.
• Keep locker doors closed when not loading or unloading batteries.
• Do not obstruct ventilation panels or the roof-mounted fire beacon.
• Ensure the 12V backup battery is maintained and tested regularly.
• In the event of a fire alarm, evacuate the area and contact emergency services. Do not attempt to open lockers.

Inspection and Maintenance

The VoltHub requires weekly owner inspection: check all pressure gauges are in the green zone, visually inspect detection hoses for damage, and confirm LED indicators are functioning. Annual servicing by a BAFE-qualified engineer is mandatory to maintain certification. Every 5 years, the unit must be returned to Armorgard for full recommissioning, including replacement of detection hoses and fire suppressant.
