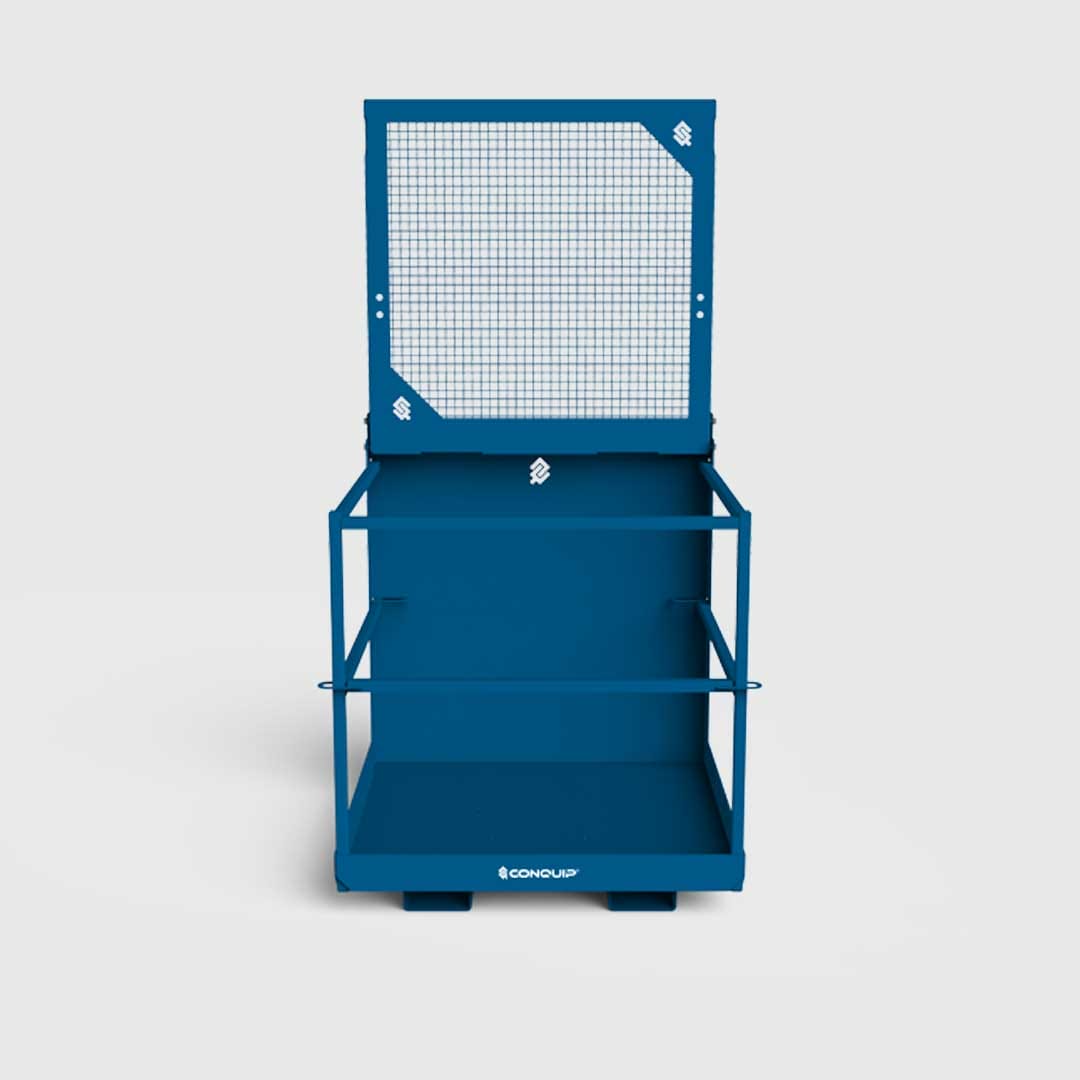

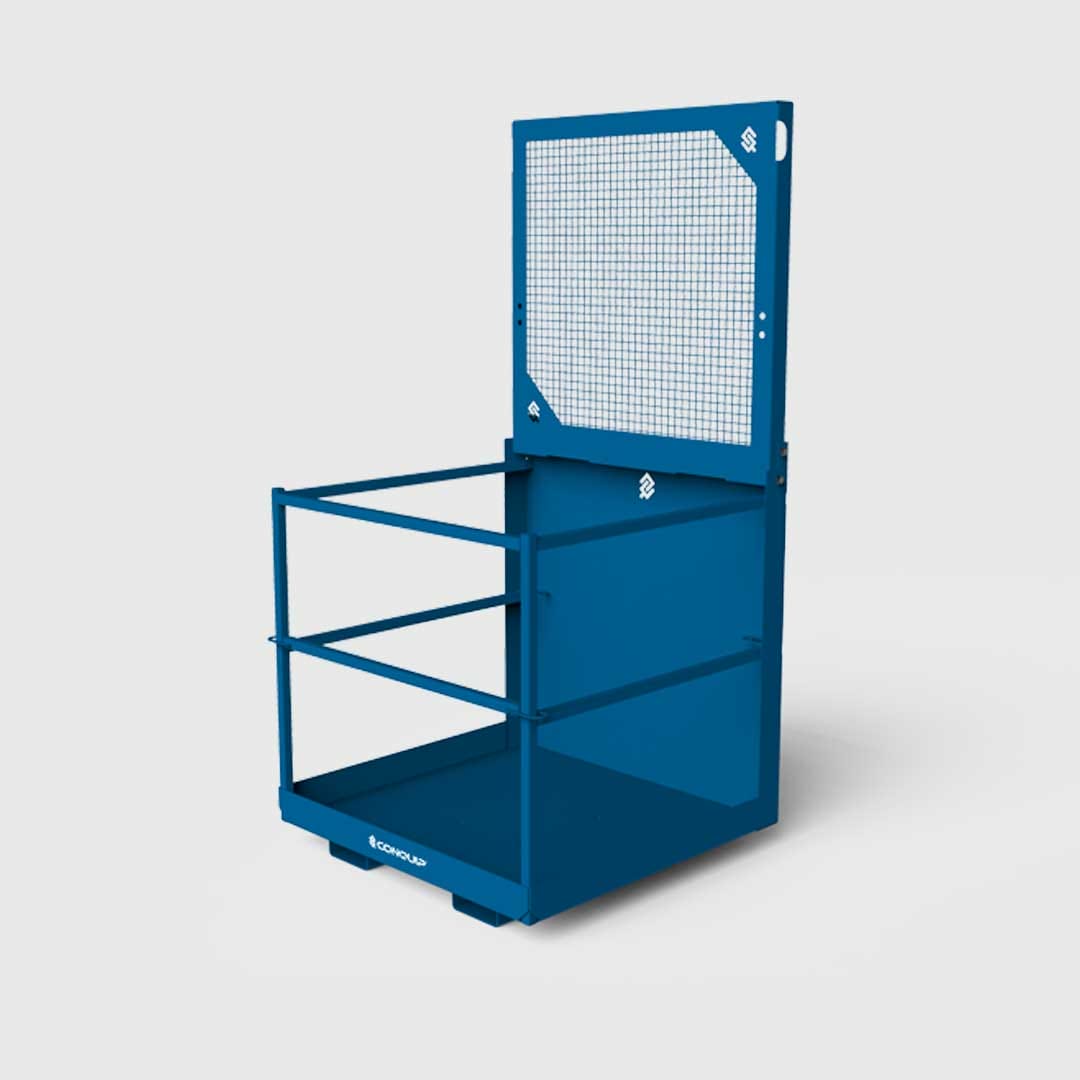

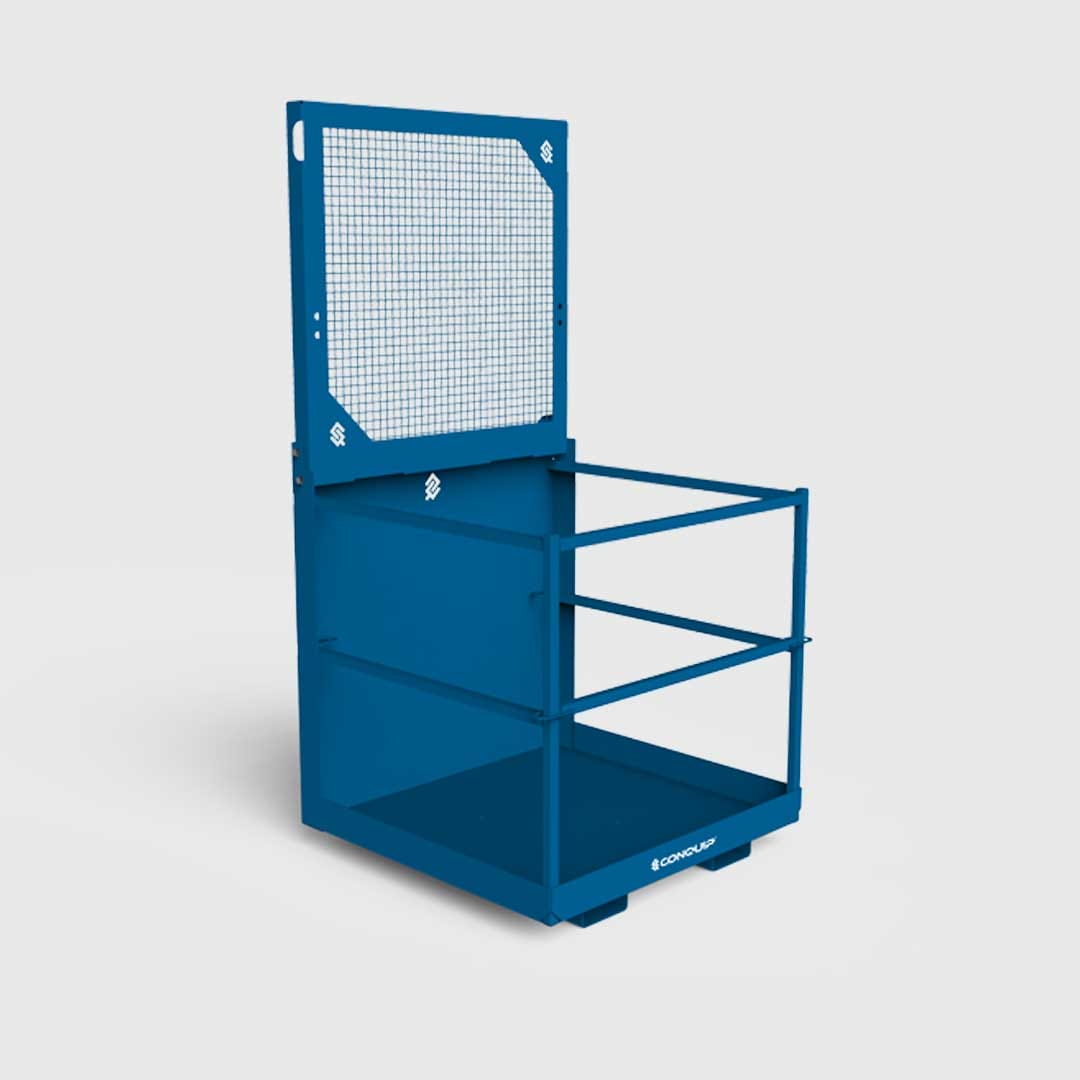

The Conquip Forklift Access Cage is a forklift-mounted personnel cage that lifts up to two operatives safely for routine maintenance, equipment inspection and warehouse stocktaking. The cage features full-height mesh sides, internal harness attachment points, and standard fork pockets with heel pin retention — a safe, low-cost alternative to bringing scissor lifts or MEWPs to site for short-duration access tasks at moderate heights.
Key Features
- Internal harness attachment points — operatives can clip on for fall protection
- Full-height mesh sides — additional containment safety during lifting

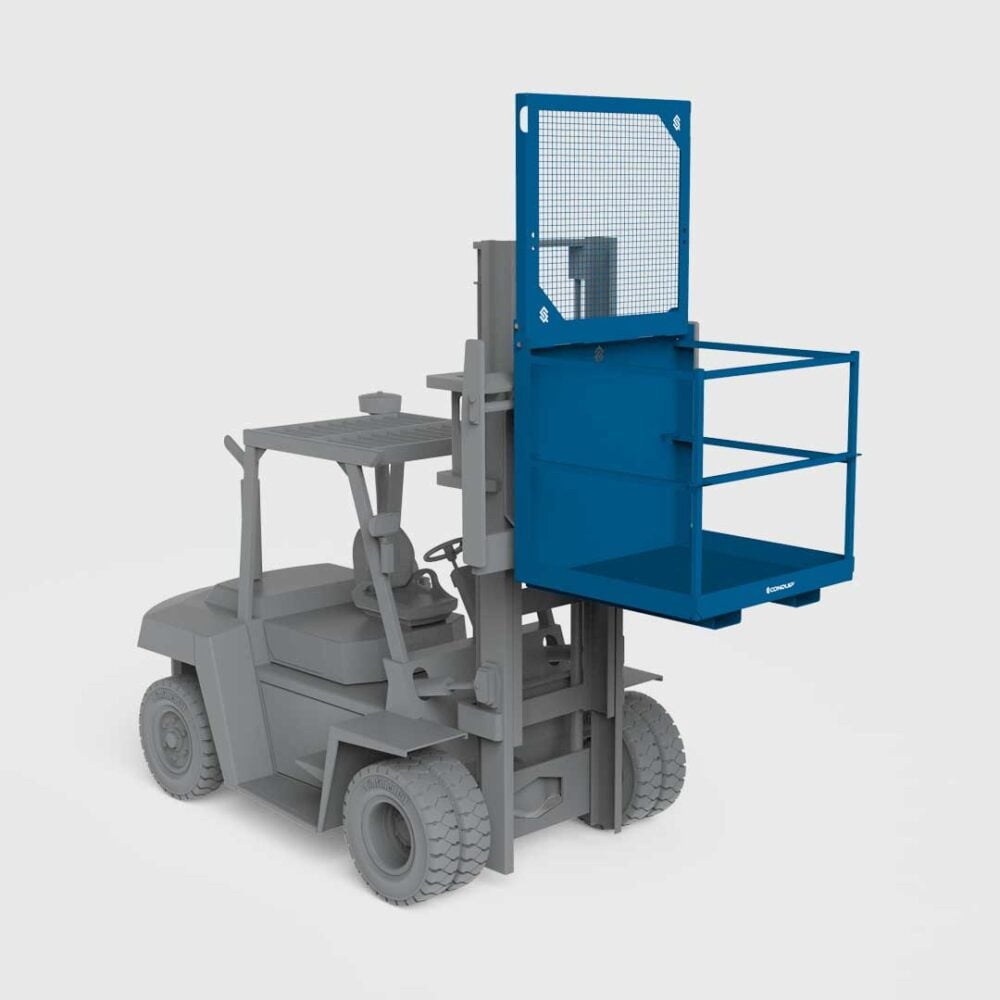

- Standard fork pockets — fits forklifts and telehandlers without fork adjustment
- Heel pin retention — locks the cage securely to the forks during use

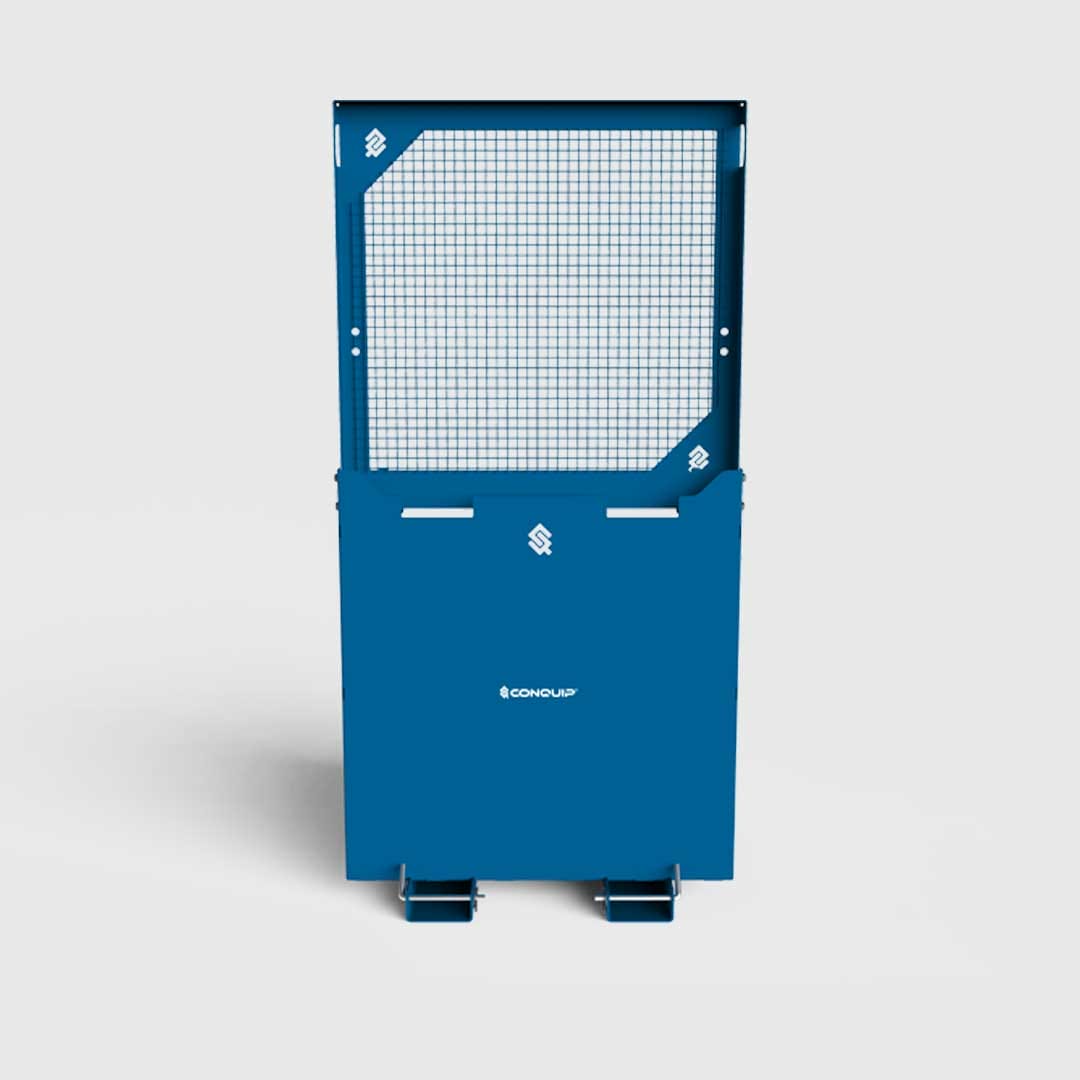

- Folding height design — closes from 2055mm to 1167mm for compact transport and storage
- Steel construction — heavy-duty UK build for repeated commercial use
Technical Specifications
| Product Code |
Length (mm) |
Width (mm) |
Height Open (mm) |
Height Closed (mm) |
Weight (kg) |
WLL (kg) |
| FA804-00240 |
1093 |
1016 |
2055 |
1167 |
140 |
250 |
* Working Load Limit (WLL) — the maximum safe lifting capacity. Capacity supports up to 2 personnel plus light equipment.
UK Manufactured | Manufactured for Forklift Use
Manufactured in the UK from high-quality steel for repeated commercial site use. Internal harness points enable operatives to clip on for fall protection. The cage is intended for forklift and telehandler mounting only — refer to the user guide for specific carrier compatibility.
Suitable Applications
The Forklift Access Cage is best suited to short-duration maintenance and inspection tasks where personnel need to reach moderate heights and a scissor lift, MEWP, or scaffold tower would be over-spec. Common uses include warehouse stocktaking at upper rack levels, building maintenance, equipment inspection, lighting and signage work, and any short-access task where a forklift or telehandler is already on site.
How to Use the Forklift Access Cage
- Position the carrier's forks at the correct width to enter the cage's fork pockets.
- Drive the forks fully home into the pockets.
- Insert the heel pins on both sides to secure the cage to the forks.
- Confirm both heel pins are seated before personnel enter the cage.
- Personnel enter the cage and clip on to the internal harness attachment points.
- Lift smoothly to the working height. Travel only at low height with the cage stable.
- On completion, lower fully to ground level before personnel exit the cage.
Warning:
Do not exceed 250kg total weight (2 personnel plus equipment). Personnel must use the internal harness attachment points. Travel between locations should be at the lowest practical height.
Safety Information
- Operators must be trained in personnel-lifting attachments before use.
- Confirm both heel pins are inserted before every lift.
- Personnel must clip on to the internal harness points before lifting starts.
- Do not exceed the 250kg WLL.
- Do not travel with personnel in the cage at height — lower fully before moving.
- Six-monthly LOLER thorough examination by a competent person required.
Frequently Asked Questions
Q: How many people can the cage lift?
The cage has a 250kg Working Load Limit and is rated for up to 2 personnel plus light equipment.
Q: Do operatives need to wear a harness?
Yes. Personnel must clip on to the internal harness attachment points before any lift commences. The cage is supplied with these points integrated for fall protection.
Q: How tall is it when collapsed for transport?
The cage has a folding design — open height is 2055mm and closed height is 1167mm, allowing compact transport and storage.
Q: Does it need regular inspection?
Yes. A six-monthly LOLER thorough examination by a competent person is required, in addition to pre-use inspections before every lift.
