Crane / Fork Mounted Access Platform

Crane / Fork Mounted Access Platform

Part no. ICAP-2
£2,578.39£2,148.66Inc VATEx VAT
£2,148.66 ex VAT£2,578.39 inc VAT ·

About this item

  • Dual crane slung and fork mounted access platform
  • Auto-locking gate; low level, rear and overhead mesh
  • 500kg, 2-person; UK manufactured by Invicta

Product description

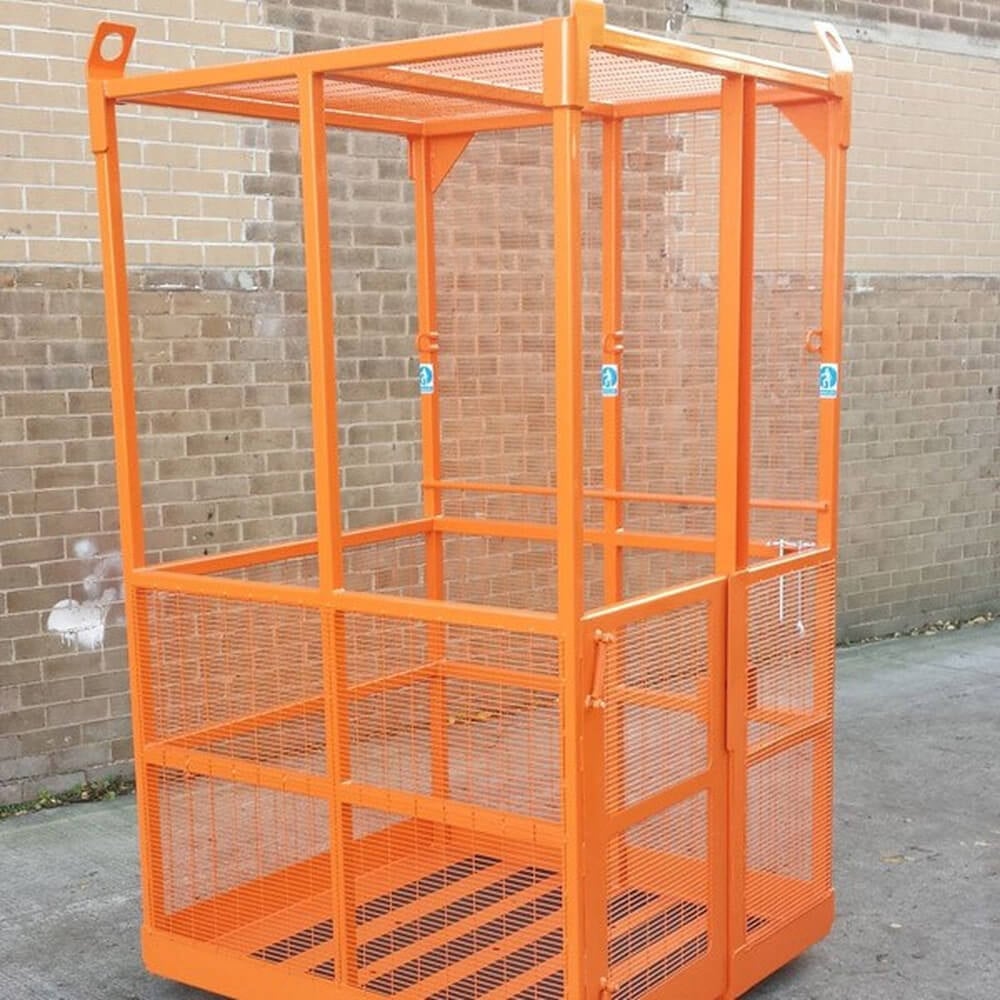

The Invicta ICAP-2 is a two-person access platform that can be either crane slung or fork mounted, with a 500 kg capacity, double the 250 kg of Invicta's fork-only platforms. On construction sites it is most often used from a crane.

Mesh at low level, at the rear and overhead encloses the operatives, and an automatic locking gate secures the entrance. Made in Leeds by Invicta Forks & Attachments.

Key Features
  • Crane slung or fork mounted from one platform
  • 2 persons, 500 kg capacity
  • Low-level, rear and overhead mesh protection
  • Gate locks automatically when raised
  • Harness attachment rings and non-slip draining floor

Specifications

ModelInvicta ICAP-2
MountingCrane slung (4 lifting eyes) or fork mounted
AccessAuto-locking side gate
Persons2
Capacity500 kg
Dimensions (L x W x H)1,220 x 1,220 x 2,320 mm
Self weight238 kg
Centre of gravity530 mm
Maximum fork section150 x 50 mm at 525 mm centres
ProtectionLow-level, rear and overhead mesh
Options4-leg chain rig for crane use; safety harness
ManufacturerInvicta Forks & Attachments, Leeds, UK
What's Included
  • Invicta ICAP-2 crane / fork mounted access platform with heel pins
  • Test certificate and EC Declaration of Conformity, where applicable

You may also need: a 4-leg chain rig and shackles for crane use, and safety harnesses, both available as options.

Documents (1)

View on this page or download.

PDFDatasheet
PDF document

Using and looking after it

Always read the manufacturer’s instructions before use. See the documents

Typical Applications
  • Crane-lifted access for fixing and inspection on construction sites
  • Forklift access for maintenance in yards and buildings
  • Work below other trades, with overhead mesh

Buying guide

Design & Construction

For fork use, the forks slide into pockets and zinc-plated heel pins lock the platform to the fork heels. For crane use, a shackle goes on each of the four lifting eyes and a 4-leg chain rig connects them to a single master ring on the hook.

The chain rig is not included as standard but is available as an option.

The gate locks once the platform leaves the ground and unlocks when it is set down level. Overhead mesh protects against falling objects when working below other trades.

Questions and answers

Q: Is the crane chain included?

A: No. A 4-leg chain rig and shackles are needed for crane use and are available as an option.

Q: What does the crane need to lift?

A: The 238 kg platform plus up to 500 kg of people and tools, so up to 738 kg plus the chain rig.
