High-Lift Access Platform

High-Lift Access Platform

Part no. IAP-3HIGHLIFT
£2,287.80£1,906.50Inc VATEx VAT
£1,906.50 ex VAT£2,287.80 inc VAT ·

About this item

  • 1000mm additional height above fork pockets
  • Auto-locking gate, fixed ladder with hand rails
  • 250kg, 2-person; UK manufactured by Invicta

Product description

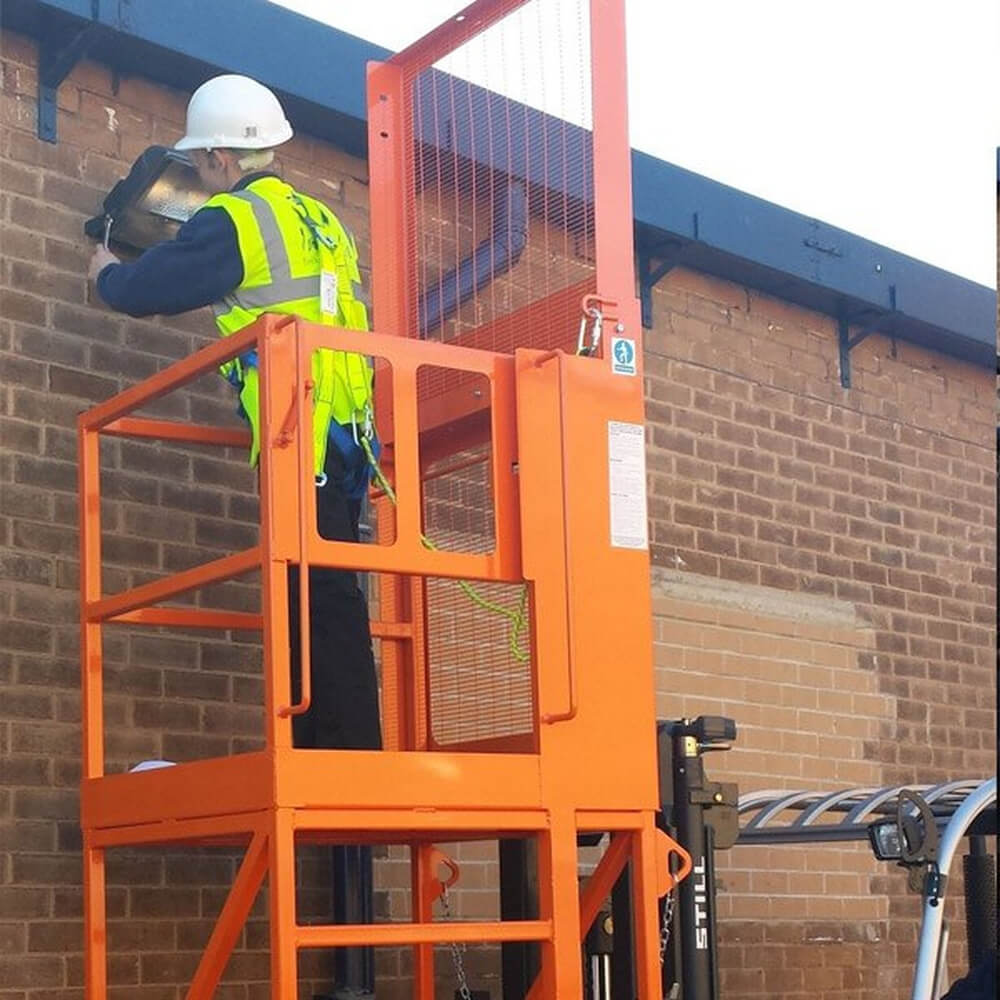

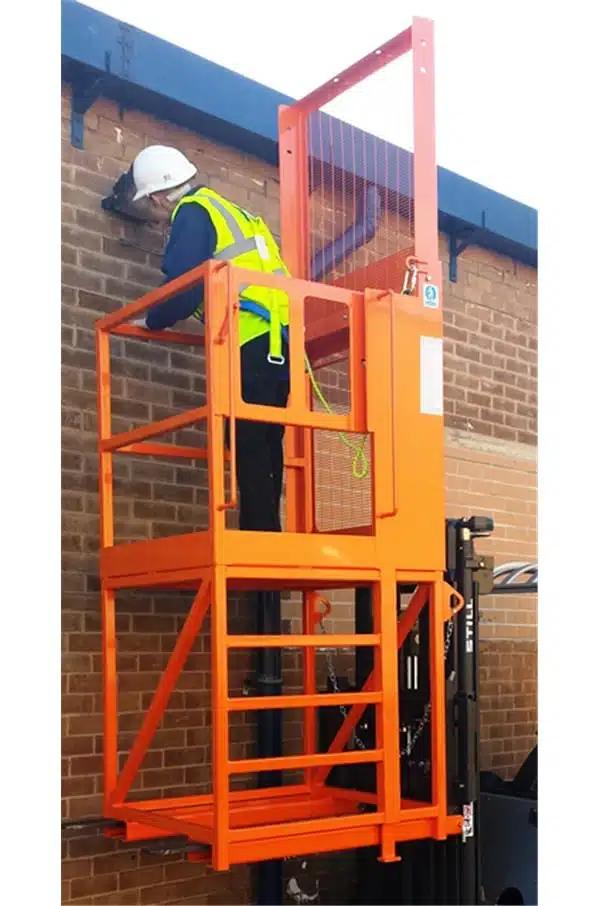

The Invicta IAP-3HL is a high-lift forklift access platform for two people, rated at 250 kg.

The fork pockets sit at floor level and the platform floor is a further 1,000 mm above them, so operatives reach higher than from a standard platform on the same truck.

A fixed ladder with handrails leads up to an automatic locking gate. Made in Leeds by Invicta Forks & Attachments.

Key Features
  • Platform floor 1,000 mm above the fork pockets
  • 2 persons, 250 kg safe working load
  • Gate locks automatically when raised
  • Fixed ladder with handrails for entry
  • Heel pins and locking chain secure it to the truck

Specifications

ModelInvicta IAP-3HL
AccessFixed ladder with handrails; auto-locking gate
Persons2
Safe working load250 kg
Dimensions (L x W x H)950 x 950 x 2,920 mm
Extra height above fork pockets1,000 mm
Self weight234 kg
Centre of gravity390 mm
Maximum fork section150 x 50 mm at 690 mm centres
Fork fixingZinc-plated heel pins and locking chain
FloorSelf-draining, non-slip
Fall protectionSafety harness attachment rings
FinishBright orange
ManufacturerInvicta Forks & Attachments, Leeds, UK
What's Included
  • Invicta IAP-3HL high-lift access platform
  • Test certificate and EC Declaration of Conformity, where applicable

Documents (1)

View on this page or download.

PDFDatasheet
PDF document

Using and looking after it

Always read the manufacturer’s instructions before use. See the documents

Typical Applications
  • High-bay warehouse lighting and services
  • Roof-level maintenance in industrial units
  • Jobs just beyond the forklift's normal platform height

Buying guide

Design & Construction

A standard platform's floor sits just above the forks. On the IAP-3HL the fork pockets are at the base of a frame and the working deck is 1,000 mm higher, adding a metre of reach at the same mast height.

That is useful where the truck's lift height falls just short of the job.

The gate locks once the platform is raised and unlocks only when it is back on level ground. Zinc-plated heel pins and a locking chain hold the frame to the forks.

Questions and answers

Q: How much extra height does it give?

A: The platform floor is 1,000 mm above the fork pockets.

Q: Will it fit my forklift?

A: Forks up to 150 x 50 mm at 690 mm centres. At 234 kg plus 250 kg load, check your truck's capacity at height.
