Spreader Beam

Part no. ISB-2
£4,115.89£3,429.91Inc VATEx VAT
£3,429.91 ex VAT£4,115.89 inc VAT ·
Core Bar Length: 5350mm

About this item

  • Crane or excavator slung beam for lifting and laying rolls and liners
  • Drop chains and core bar included
  • 1700kg UDL; UK manufactured by Invicta

Product description

The Invicta ISB Spreader Beam lifts and lays rolls of geotextile, membrane and liner from a crane or excavator.

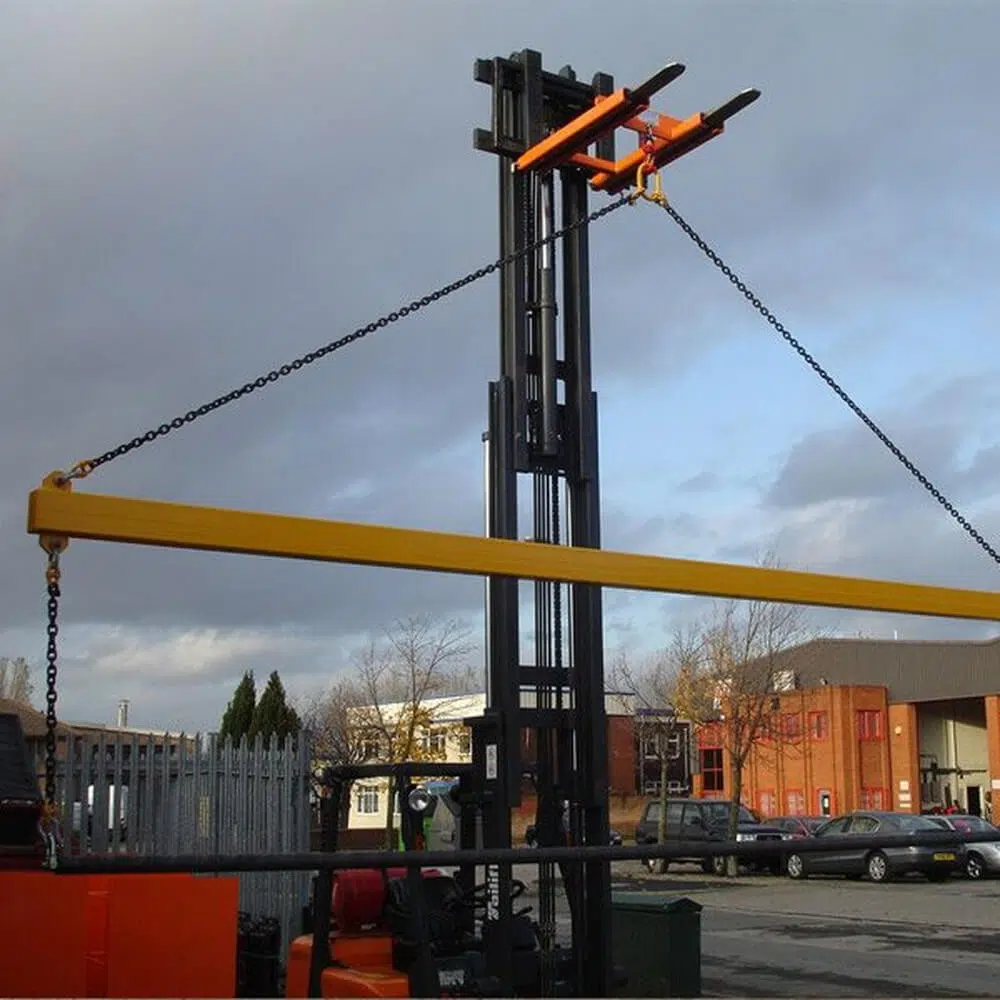

A core bar passes through the middle of the roll, drop chains hang from each end of it to the spreader bar above, and a 2-leg chain with a single ring gives a balanced one-point lift.

It carries 1,700 kg spread evenly along the core bar, in 5,350 mm or 6,350 mm core bar lengths, and is one of several spreader beams we supply. Made in Leeds by Invicta, who also make our forklift-mounted battery lifting beam.

Key Features
  • 1,700 kg UDL along the full core bar
  • Spreader bar 250 mm wider than core bar keeps chains clear of roll ends
  • Two 1,000 mm drop chains with shackles included
  • 2-leg chain to a single lifting ring
  • Crane or excavator slung, orange finish

Specifications

Choose a size above to see its specifications.

Compare all 2 sizes
Model UDL capacity Core bar length Core bar dia. Extra lift height Weight C of G
ISB-2 1,700 kg 5,350 mm 64 mm 2,800 mm 260 kg 50 mm
ISB-3 1,700 kg 6,350 mm 64 mm 3,150 mm 300 kg 50 mm

Manufacturer: Invicta Forks & Attachments, Leeds, UK.

What's Included
  • Main spreader bar with 2-leg chain and single lifting ring
  • Core bar in your chosen length
  • Set of two 1,000 mm drop chains with shackles
  • Test certificate and EC Declaration of Conformity where applicable

Documents (1)

View on this page or download.

PDFDatasheet
PDF document

Using and looking after it

Always read the manufacturer’s instructions before use. See the documents

Typical Applications
  • Laying landfill cell liners
  • Lining man-made ponds and lagoons
  • Geotextile on bankings and embankments
  • Membrane rolls on civils jobs

Buying guide

Design & Construction

The 64 mm core bar goes through the roll's centre tube and the two drop chains shackle to each end of it. Because the main spreader bar above is 250 mm wider than the core bar, the drop chains hang vertically and do not rub or crush the ends of the roll.

The rating is a UDL (uniformly distributed load), meaning 1,700 kg spread evenly across the whole core bar, which suits a full-width roll. Allow for the extra lift height, 2,800 or 3,150 mm, when checking hook height.

Choosing the Right Size
Model Core bar length Extra lift height Best suited to
ISB-2 5,350 mm 2,800 mm Standard-width liner and geotextile rolls, or limited headroom
ISB-3 6,350 mm 3,150 mm Wider rolls up to the longer core bar length

Questions and answers

Q: What does UDL mean here?

A: Uniformly distributed load: the 1,700 kg rating assumes the weight is spread evenly along the whole core bar, as with a full-width roll.

Q: Can it go on an excavator?

A: Yes, it is designed to be slung from a crane or an excavator via the single lifting ring.

Q: Will the roll's core take a 64 mm bar?

A: The core bar is 64 mm diameter, so the roll's centre tube must be larger than that. Check your roll supplier's core size.
