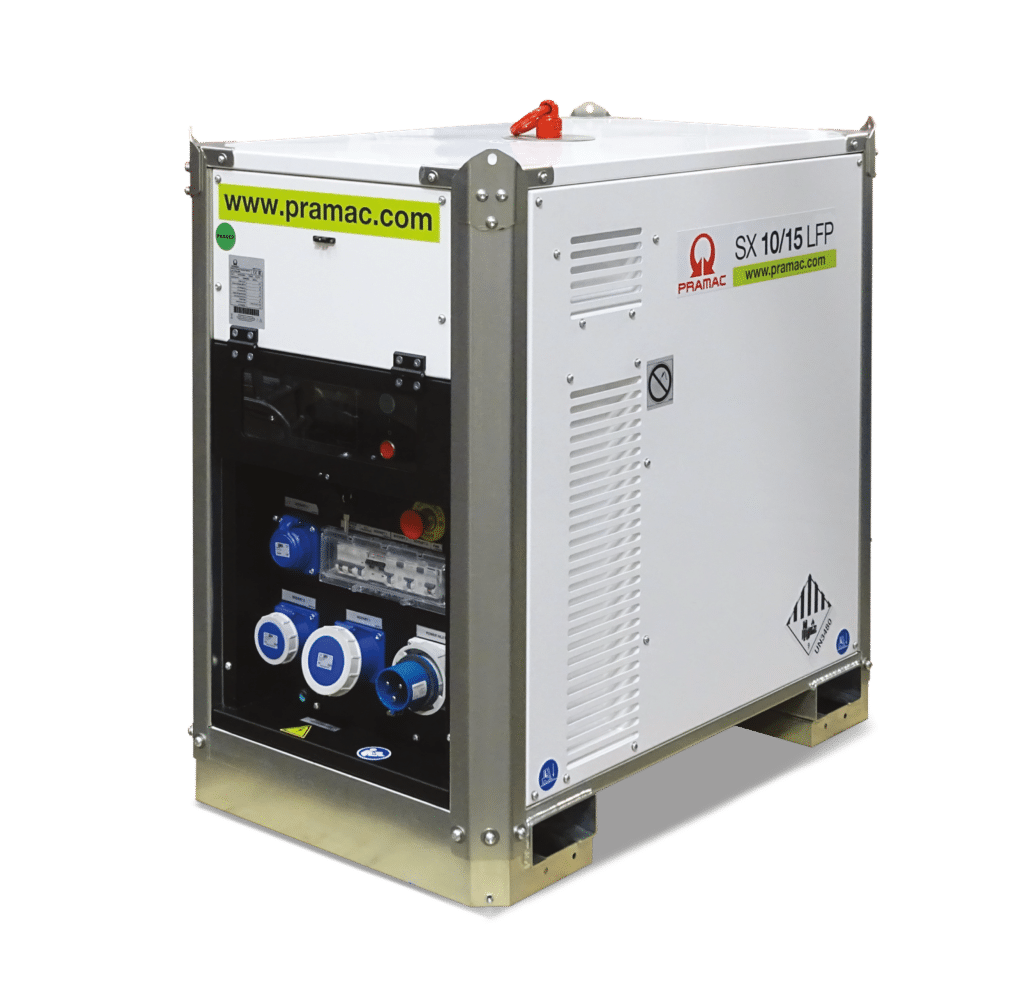

Pramac SX 10/15 LFP

Pramac SX 10/15 LFP

Part no. PRAMAC-SX-10-15-LFP
£16,350.00£13,625.00Inc VATEx VAT
£13,625.00 ex VAT£16,350.00 inc VAT ·

About this item

  • 10kVA output with 14.4kWh lithium iron phosphate (LFP) battery storage
  • 230V 50Hz single-phase supply with UK socket panel fitted
  • MPPT solar input for direct panel charging; silent with no fuel or emissions in use

Product description

The Pramac SX 10/15 LFP doubles the output of the SX 5/10 in the same 995 x 595 mm footprint: 10 kVA single-phase from 14.4 kWh of lithium iron phosphate storage. It runs at 55 dB(A) at 1 m, with no fuel or emissions in use.

GSM remote monitoring and an automatic generator start signal make it suited to hybrid sites, and two units can be stacked to save space.

Key Features
  • 10 kVA continuous, 18 kW peak for 5 seconds
  • 12.4 kWh usable from 14.4 kWh installed
  • Auto start signal for a hybrid generator
  • GSM remote monitoring of unit status
  • Stacks two high; cold weather kit option

Specifications

ModelSX 10/15 LFP
Continuous output10 kVA
Peak output (5 s)18 kW
Supply230 V 50 Hz single phase
Storage capacity14.4 kWh
Usable energy (90% DoD, AC side)12.4 kWh
Battery chemistryLithium iron phosphate (LFP)
Battery modules3 x 4.8 kWh, 48 V DC
Battery weight120 kg
Inverters1 x 10 kVA
Noise73 dB(A) LWA; 55 dB(A) LpA at 1 m
Input connections1 x 32 A CEE 2P+T
Outputs (Pramac standard panel)1 x 16 A Schuko, 1 x 16 A CEE 2P+T, 1 x 32 A CEE 2P+T; individual RCD per socket
ControlsGSM remote monitoring, automatic generator start signal, inverter protection (short circuit, overload, over-temperature, low battery), battery isolator
OtherStackable 2 high; cold weather kit option
Design life6,000 cycles
ProtectionIP44
Operating temperature-10 to +50 °C
Configuration+HUK (UK socket panel) +MPPT (solar input)
Dimensions (L x W x H)995 x 595 x 989 mm
Weight330 kg
What's Included
  • Pramac SX 10/15 LFP battery energy storage unit
  • UK socket panel (HUK) fitted
  • MPPT solar input fitted
  • Operator and commissioning documentation

Solar panels, generator and site distribution are not included.

You may also need: the Pramac SX 5/10 LFP or the Pramac SX Plus 10/40 LFP if your load or run time differs.

Documents (1)

View on this page or download.

PDFProduct card
PDF document

Using and looking after it

Always read the manufacturer’s instructions before use. See the documents

Typical Applications
  • Site offices and welfare with heavier daytime loads
  • Hybrid sites with a generator started on demand
  • Night works on residential streets
  • Events, film and broadcast

Buying guide

Design & Construction

Two figures matter. kVA is the power the unit can deliver at once; kWh is the energy stored, which sets how long it lasts. Usable energy is quoted at 90% depth of discharge (DoD, how far the battery is drained) measured on the AC side, so it allows for inverter losses.

Divide usable kWh by your average load in kW for an estimated run time.

Peak output (18 kW for 5 seconds here) covers the brief surge as motors and compressors start. Pass-through (32 A) is the current a generator or mains supply can feed through the unit to your loads while it recharges the battery.

The cells are lithium iron phosphate (LFP), a lithium chemistry that is more thermally stable and longer lived than standard lithium-ion, with a 6,000-cycle design life. MPPT (maximum power point tracking) is a solar charge controller that gets the most from panels as light changes, so they can charge the battery directly.

On a hybrid site the battery carries the load through quiet periods and the generator runs only to recharge.

Choosing the Right Model

Size on your 24-hour energy use in kWh, not only the peak load. A site drawing 3 kW for 16 hours needs 48 kWh, however small its peak.

Model Output Usable energy Peak (5 s) Phase Pass-through
SX 5/10 5 kVA 8.3 kWh 9 kW Single 32 A
SX 10/15 10 kVA 12.4 kWh 18 kW Single 32 A
SX Plus 5/25 5 kVA 20.5 kWh 10 kW Single 50 A
SX Plus 10/40 10 kVA 33.2 kWh 20 kW Single 80 A
MX 15/40 15 kVA 32.8 kWh 30 kW Three 63 A
MX 30/60 30 kVA 49.8 kWh 60 kW Three 63 A
LX 45/80 45 kVA 66.4 kWh 75 kW Three 100 A
LX 45/100 45 kVA 82.9 kWh 75 kW Three 100 A
LX 60/100 60 kVA 82.9 kWh 120 kW Three 125 A
LX Plus 90/150 90 kVA 124.4 kWh 150 kW Three 200 A

Questions and answers

Q: How does the automatic generator start work?

A: When the battery needs recharging, the SX 10/15 sends a start signal to a connected generator, which then charges the battery and stops. Check your generator accepts a remote start input.

Q: Can it replace a generator entirely?

A: On a light, predictable load with mains or solar to recharge it, yes. On most sites the practical answer is hybrid: the battery plus a smaller generator running a few hours a day.

Q: Does Stage V apply to it?

A: No. Stage V is an engine emissions standard, and the unit has no engine. On hybrid sites, pair it with a Stage V generator.
