Yale AYH Clevis Eye Mounting

SKU AYH_CLEVIS_EYE_MOUNTINGS
Inc VAT
£127.34
Ex VAT
£106.12
Estimated delivery: 5–7 daysDelivery: ✓ FREE
✓ Secure checkout ✓ BACS & Proforma ✓ Credit account

Key features

  • ✓ Clevis eye mountings
  • ✓ For Yale YH double-acting cylinders
Why WOLFF Onsite
170+ yrs

Part of Wolffkran heritage since 1854 — we trust the kit we sell

Price match

Seen it cheaper? Send us the quote and we'll try to match it

30 days

Returns on unused items in original packaging — full refund, no fuss

UK support

Lifting-gear specialists in Sheffield & London — phone & email

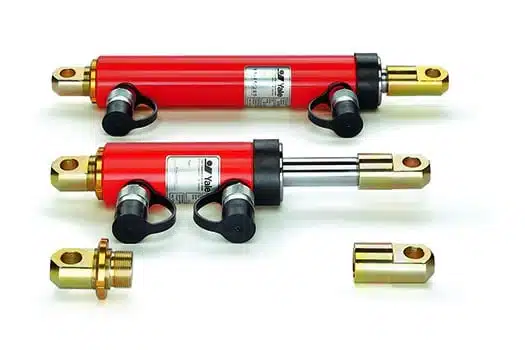

Yale AYH clevis eye mountings are pivoting mounts that screw onto the piston and base of YH double-acting cylinders for applications where mounting conditions require cylinder pivoting. Three capacity sizes cover the YH-5, YH-10 and YH-20 ranges, each with both a base-mount variant (-1) and a piston-mount variant (-2).

Pivoting mounts for Yale YH double-acting cylinders

Yale states the clevis eye mountings are screwed onto the piston and bottom of the hydraulic cylinder in cases where mounting conditions require pivoting of the cylinder. Each capacity is available in two variants: base mount (-1) and piston mount (-2).

Suitable Applications

Per Yale: applications requiring the cylinder to pivot during operation. Yale designates the AYH specifically for YH cylinders (double-acting universal).

Key Features

  • Pin-and-Clevis Pivoting Connection: cylinder articulates around the mounting pin.
  • Three Capacity Sizes: for YH-5, YH-10 and YH-20 series.
  • Base and Piston Variants: -1 for base, -2 for piston.
  • Includes Retainer Nut: DIN 981 for base variants.

Technical Specifications

Designed for Yale YH double-acting universal cylinders
AYH-5-1 / AYH-5-2 for YH-5/30, YH-5/80, YH-5/150 (base / piston), 0.3 kg each
AYH-10-1 / AYH-10-2 for YH-10/30, YH-10/80, YH-10/150, YH-10/250 (base / piston), 0.6 kg each
AYH-20-1 / AYH-20-2 for YH-20/150, YH-20/250 (base / piston), 2.1 kg each

Frequently Asked Questions

Q: AYH-...-1 or AYH-...-2?

Yale's designation: -1 for cylinder base mounting, -2 for piston mounting. For each YH cylinder you typically need both - one of each per pivoting installation.

Q: Does the AYH fit YS cylinders?

Yale designates the AYH range specifically for YH (double-acting) cylinders. For YS cylinder mounting, use the AYP threaded flange range.

Q: Is a retainer nut included?

Yes. Yale specifies a DIN 981 retainer nut for the AYH-5-1, AYH-5-2, AYH-10-1, and AYH-20-1 variants.
