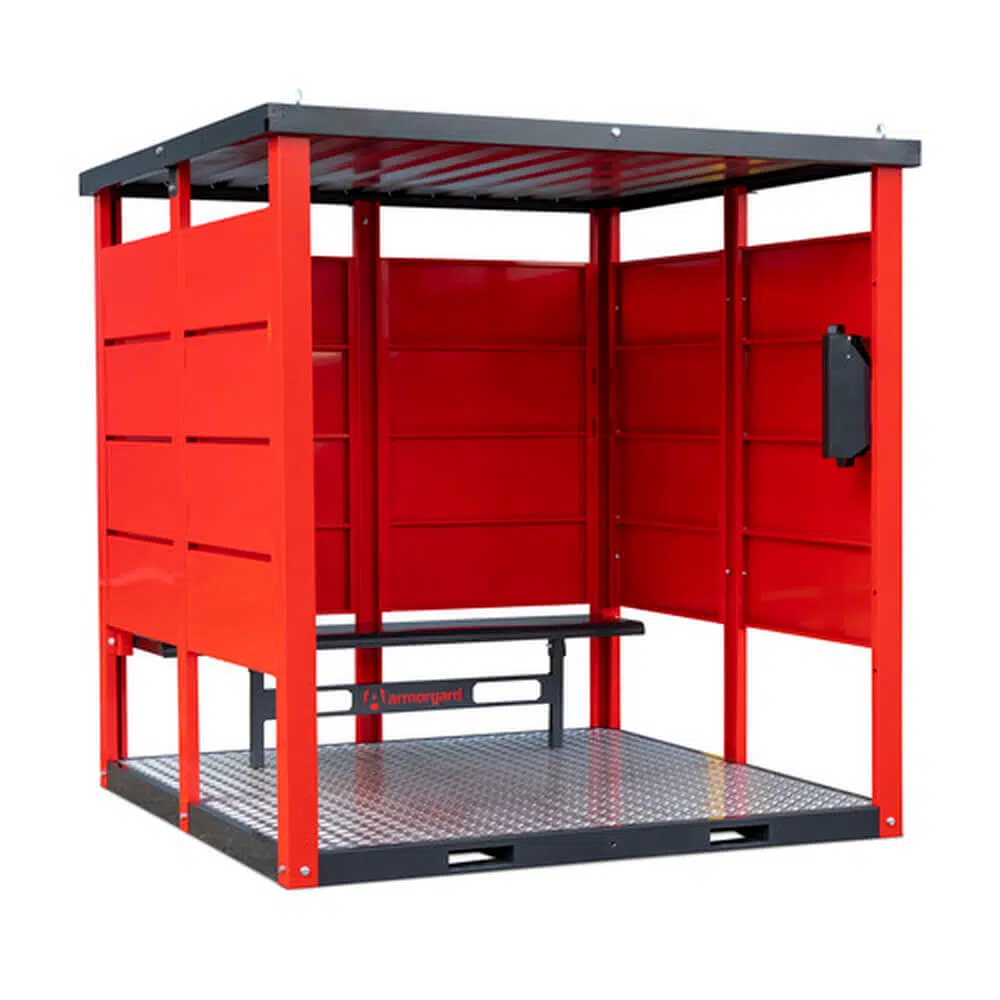

The Armorgard Forma-Shelta FR200-S is a purpose-built welfare shelter providing a safe, designated area for smoking and vaping on construction sites, fully compliant with the Smoking Shelters Health Act 2006. The flat-pack modular design assembles in under 10 minutes, with forklift pockets and crane lifting eyes for easy relocation. Built from 1mm and 2mm powder-coated steel with a durable aluminium anti-slip tread plate floor, it features a fold-down bench, integrated gutters and high and low ventilation as standard, with a cigarette bin available as an optional extra.
Key Features
- Assembles in under 10 minutes - flat-pack modular design allows quick construction at the point of use with standard tools.
- Health Act 2006 compliant - provides a designated smoking area that meets legal requirements for workplace smoking shelters.
- Fold-down bench - built-in seating at 425mm height, folds away when not required.
- Optional cigarette bin - removable ashtray (sold separately) slots into any upright for convenient waste disposal.
- Aluminium anti-slip tread plate floor - durable, non-slip surface for safe use in wet conditions.
- Fire-resistant construction - fireboard beneath the floor provides fire protection and additional weight for stability.
- Crane lifting eyes - four integrated lifting points allow the assembled unit to be repositioned by crane.
- Forklift pockets - integrated skids for transportation via forklift or pallet truck.
- High and low ventilation - allows air circulation within the shelter while providing weather protection.
- Integrated gutters - powder-coated corrugated roof with guttering for excellent weatherproofing.
- Fully modular - can be assembled in any orientation to suit site requirements.
Technical Specifications
| Specification |
FR200-S |
| External Dimensions (W x D x H) |
2080 x 2100 x 2070 mm |
| Bench Height |
425 mm |
| Weight (Assembled) |
275 kg |
| Material Thickness |
1mm and 2mm steel |
| Colour |
Black Grey (RAL 7021) with Traffic Red (RAL 3020) |
| Finish |
Powder coated steel with aluminium floor |
| Floor Type |
Aluminium anti-slip tread plate |
| Fire Protection |
Fireboard beneath floor |
| Forklift Pockets |
Yes |
| Crane Lifting Eyes |
4 (included) |
| Cigarette Bin |
Optional extra |
| Fold-Down Bench |
Yes (included) |
| Stackable |
Yes |
| Assembly Required |
Yes - approximately 10 minutes |
All dimensions and weights are approximate.
Health Act 2006 Compliant - Fire Resistant & Weather Protected
The Forma-Shelta is fully compliant with the Smoking Shelters Health Act 2006, providing a designated area that encourages users to smoke in controlled locations only. The unit features fire-resistant fireboard beneath the floor for added protection. Armorgard products are built in the UK and come with a 12-month manufacturer's warranty covering defects in workmanship.
More About This Product
The Armorgard Forma-Shelta FR200-S is a purpose-built welfare shelter providing a safe, designated area for smoking and vaping on construction sites. The flat-pack modular design can be assembled in under 10 minutes, with forklift pockets and crane lifting eyes for easy site relocation. Built from 1mm and 2mm powder-coated steel with a durable aluminium anti-slip tread plate floor, the Forma-Shelta features a fold-down bench, integrated gutters, and high and low ventilation as standard. A cigarette bin is available as an optional extra. Fully compliant with the Smoking Shelters Health Act 2006.
Suitable Applications
The Forma-Shelta FR200-S is designed for construction sites, industrial facilities, and commercial premises where a designated smoking or vaping area is required. The shelter provides protection from weather while encouraging workers to use designated areas only, helping sites comply with smoking legislation. The flat-pack design means the shelter can be delivered to restricted access locations and assembled at the point of use, while crane lifting eyes and forklift pockets allow easy relocation as site requirements change.
Flat-pack units ship assembled-on-site, which cuts delivery cost and gets through doorways a welded unit cannot. See also site boxes.
How to Assemble the Forma-Shelta FR200-S
- Place the base on a level, stable surface. The forklift pockets can be positioned at any side but are recommended at the front.
- Attach uprights to each corner of the base using 2x M12x25mm bolts with washers. Tighten the two front uprights but leave rear uprights hand tight.
- Fit the mounting brackets for the folding bench to the inside of each rear upright using M8 fixings.
- Slot the lugs of the folding bench into the brackets, then tighten the rear uprights to the base.
- Lift the roof onto the uprights and locate using the channels running under the roof in each corner.
- Fit the middle supports for the side panels - one on the back and one on each side. Slide the top under the roof first, then fix to the base.
- Insert M12 crane lifting eyes from the top in each corner of the roof, through the slot in the upright below. Secure with washers and nylock nuts.
- Lift each wall panel into place between upright and middle support, then secure using M8 fixings. Ensure ribs face inwards.
- If purchased, slot the cigarette bin into any upright (no fixings required).
- Re-check every fixing on the Forma-Shelta and ensure no fastener is loose.
Important:
At least two people are required to safely erect or dismantle the Forma-Shelta. Wear appropriate PPE during assembly. Some parts are heavy and there is a risk of trapping fingers - take care when handling panels.
Safety Information
- Carry out a risk assessment before assembling or using the Forma-Shelta.
- At least two people are required to erect or dismantle the unit. Wear appropriate PPE during assembly.
- The Forma-Shelta must be positioned on a flat, solid, level surface before use.
- Before lifting or moving the assembled unit, have a qualified person carry out a thorough examination.
- Only qualified personnel should assist in lifting the Forma-Shelta by crane.
- Before disposing of cigarette waste, ensure no embers are left burning.
- Pull the plunger on the rear of the cigarette bin lid to open and empty into a general waste bin.
Frequently Asked Questions
Q: How long does the Forma-Shelta take to assemble?
The Forma-Shelta can be assembled in under 10 minutes by two people using standard tools (19mm and 13mm spanners or sockets).
Q: Is the Forma-Shelta compliant with smoking legislation?
Yes. The Forma-Shelta FR200-S is fully compliant with the Smoking Shelters Health Act 2006, providing a designated area for smoking and vaping that meets legal requirements.
Q: Is a cigarette bin included?
No. The cigarette bin is available as an optional extra and is sold separately. It slots into any upright without fixings and can be easily removed for emptying.
Q: Can the Forma-Shelta be moved once assembled?
Yes. The FR200-S has four crane lifting eyes and forklift pockets for relocation. Before lifting, have a qualified person carry out a thorough examination to ensure the unit is safe to move.
