Armorgard Forma-Stor COSHH FR100-C
1 / 8

Armorgard Forma-Stor COSHH FR100-C

Part no. ARMFR100C
£3,895.07£3,245.89Inc VATEx VAT
£3,245.89 ex VAT£3,895.07 inc VAT ·

About this item

  • Forma-Stor FR100-C flat pack COSHH store
  • Manufactured from 1mm and 2mm steel
  • Supplied with 3 keys

Product description

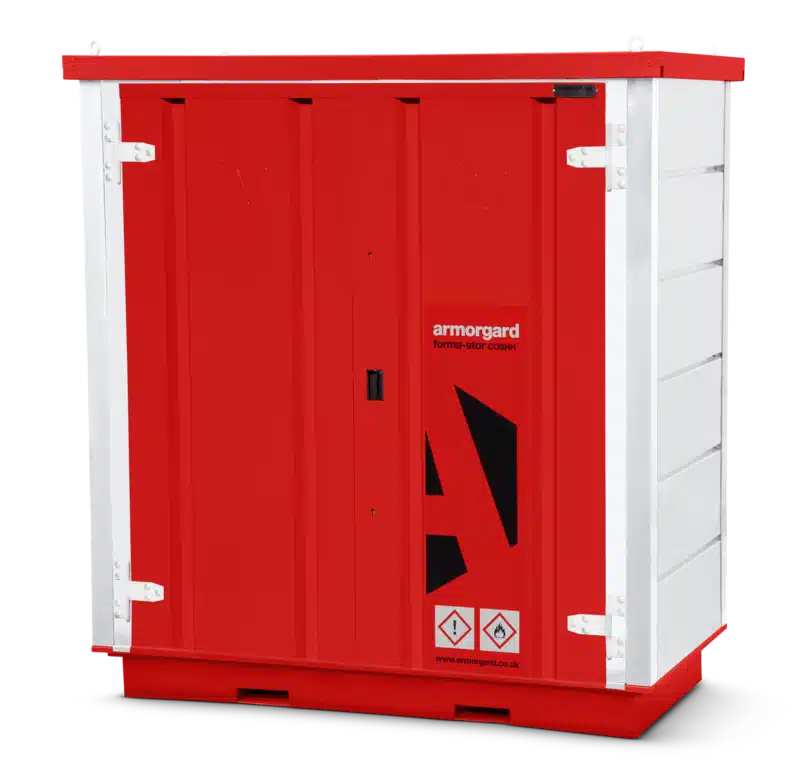

The Armorgard Forma-Stor COSHH FR100-C is the smallest walk-in COSHH store in the Forma-Stor range: a flat-packed steel building for paints, solvents, fuels and chemicals, with a 220 L sump under an open steel floor.

It assembles on site to 2,075 x 1,000 x 2,195 mm, locks with two 5-lever deadlocks and arrives flat on a 405 mm high pack that can be stacked and lifted by forklift or crane.

Key Features
  • 220 L sump under an open steel floor
  • Narrow 1,000 mm depth suits fence lines and tight compounds

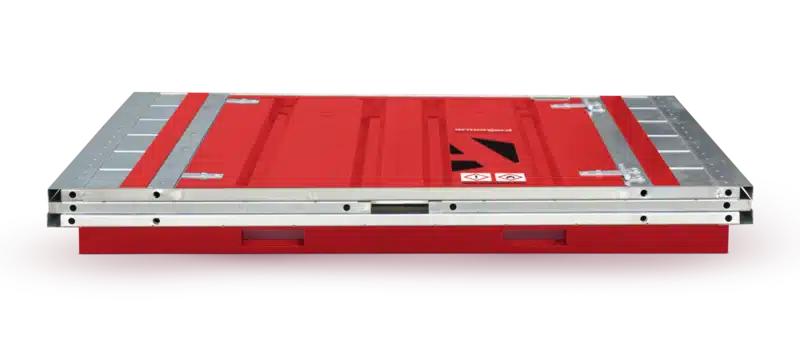

  • Flat packs to 2,075 x 1,940 x 405 mm for delivery
  • 2 x 5-lever deadlocks, 3 keys
  • Forklift pockets and crane lifting eyes

Specifications

Product codeFR100-C
External dimensions (W x D x H)2,075 x 1,000 x 2,195 mm
Internal dimensions (W x D x H)1,590 x 845 x 1,790 mm
Flat-packed size2,075 x 1,940 x 405 mm
Weight277 kg
Sump capacity220 L
FloorHeavy-duty open steel, draining to sump
Fire resistanceUp to 30 minutes (Armorgard; not a certified fire rating)
ShelvesNone as standard
Material1 mm and 2 mm steel
FinishGalvanised and powder coated, traffic red RAL 3020
Locking2 x 5-lever deadlocks
Keys supplied3
VentilationAir vents
HandlingForklift pockets, crane lifting eyes; collapsible and stackable
DeliveryFlat packed (assembled at additional cost)
Suitable forOutdoor storage of flammables or chemicals
What's Included
  • Armorgard Forma-Stor COSHH FR100-C, flat packed
  • 3 keys
  • Hazard warning signage

You may also need: Forma-Stor shelf FRS2, BlokkaBar FRBL2 and ramp FRR7, optional extras from Armorgard.

Documents (2)

View on this page or download.

PDFArmorgard FR100C Data Sheet
PDF document
PDFArmorgard FR100C Documentation
PDF document

Using and looking after it

Always read the manufacturer’s instructions before use. See the documents

Typical Applications
  • COSHH store along a compound fence line
  • Small-site stocks of paint and solvent
  • Temporary sites where the store moves on
  • Facilities and maintenance teams

Buying guide

Design & Construction

The FR100-C is the shallow member of the Forma-Stor COSHH family: 2,075 mm wide but only 1,000 mm deep, giving a 1,590 x 845 mm walk-up floor over a 220 L sump. Spills drain through the open steel floor into the sump, away from the containers.

It arrives as a flat pack for site assembly (or assembled at extra cost), and can be taken down and moved again. Galvanised and powder-coated 1 mm and 2 mm steel panels resist weather; air vents let fumes escape.

Which Option Do I Need?
Model External W x D x H Internal W x D x H Sump Weight
FR100-C 2,075 x 1,000 x 2,195 mm 1,590 x 845 x 1,790 mm 220 L 277 kg
FR200-C 2,075 x 2,000 x 2,195 mm 1,850 x 1,590 x 1,790 mm 440 L 415 kg
FR300-C 2,960 x 2,075 x 2,195 mm 2,840 x 1,920 x 1,790 mm 680 L 553 kg
FR400-C 3,960 x 2,075 x 2,195 mm 3,840 x 1,920 x 1,790 mm 960 L 663 kg

Size by floor area and the largest container: the sump should be able to hold a spill from it. For more floor space, see the 2 m deep FR200-C.

Questions and answers

Q: Does it come assembled?

A: It arrives flat packed for assembly on site. Armorgard can supply it assembled at additional cost.

Q: Where does a spill go?

A: Through the open steel floor into the 220 L sump underneath, keeping it away from the containers and the ground.

Q: Are shelves included?

A: No shelves are fitted as standard. Forma-Stor shelf FRS2 is an optional extra.
