Invicta Four Fork Attachment

Model IFF | Four Fork Configuration | Up to 3000kg Capacity | UK Manufactured

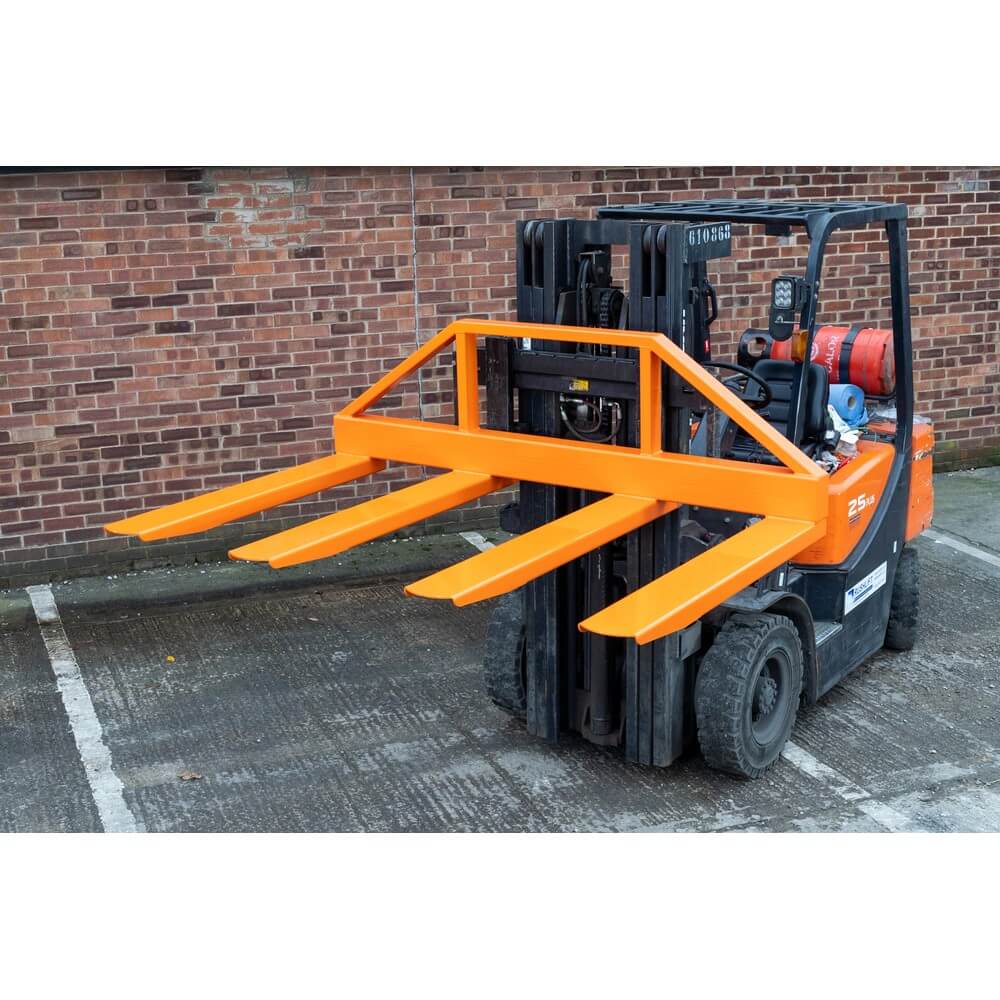

The Invicta Four Fork Attachment (Model IFF) is designed to provide a method of lifting and moving unpalletised loads such as timber planks, sheet steel and tubing, plastic pipes and concrete lintels safely — minimising the potential of damaging the product. The four parallel forks cradle long loads from underneath, distributing the weight evenly and preventing the bowing or sagging that can occur with standard two-fork handling. Available in four widths from 1500mm to 3000mm with capacities up to 3000kg at 600mm load centre. Manufactured in Leeds by Invicta Forks & Attachments.

Technical Specifications

Inner fork pocket positioned to suit site application — advise on placement of order, otherwise set at 683mm centres as standard.

Key Features

• Four-fork configuration — distributes load evenly across four support points to prevent product damage
• Adjustable inner fork pocket position — can be set to suit your specific application on order
• Smooth profiled fork pockets — ensures product care during handling
• Secure fork attachment — zinc plated heel pins for safe attachment to the forklift truck
• High-visibility finish — painted bright orange for safety

Suitable Applications

The IFF is ideal for builders merchants, timber yards, steel stockholders, pipe distributors and precast concrete manufacturers where long, unpalletised products need to be handled without damage. Common loads include timber planks, steel tubing, plastic pipes, concrete lintels, scaffold boards and sheet materials.

How to Use the Four Fork Attachment

1. Position the forks to the correct distance apart to locate into fork pockets.
2. Remove heel pins from the attachment.
3. Drive the forks into the fork pockets.
4. Insert heel pins directly behind the heel of the fork and attach safety lynch pin.
5. Approach the load and lift evenly across all four forks.

Warning: Ensure the load is evenly distributed across all four forks before lifting. Do not shock load the attachment. Ensure heel pins are correctly fitted before every use.

Safety Information

• Ensure heel pins are correctly inserted before every use.
• Ensure the load is evenly distributed across all four forks.
• Do not shock load the attachment under any circumstances.
• Do not exceed the safe working load.

Inspection and Maintenance

Inspect weekly — focus on weld points, fork pockets and heel pin attachments. Certified for six months from manufacture.
