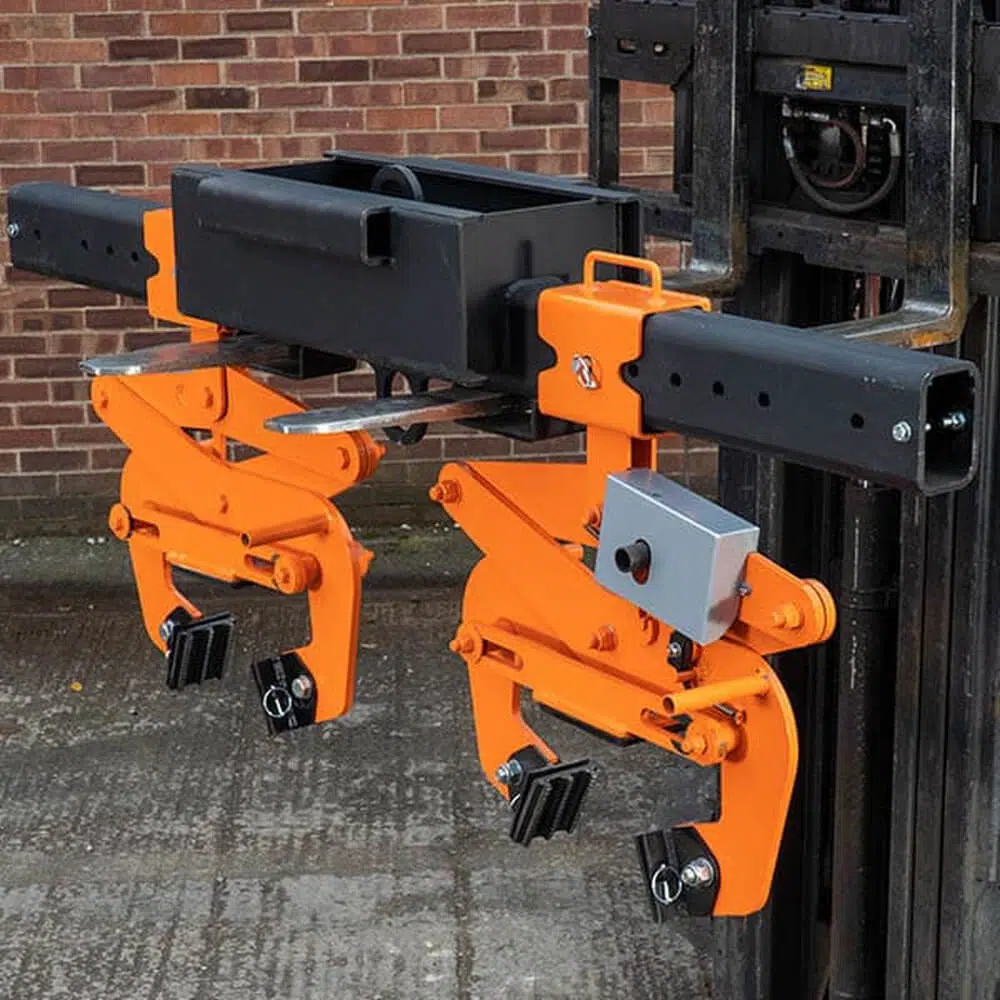

The Invicta Mechanical Well Ring Lifter (Model IWRF) lifts, moves and releases well rings safely on building sites or within builders yards. Each grab works independently and is fully automatic in operation, adjustable in width to accommodate variable ring diameters from 900mm to 1800mm, with the driver remaining within the safety of the forklift cab throughout. Suitable for both forklift and HIAB-type applications; manufactured in Leeds by Invicta Forks & Attachments.
Key Features
- Fully automatic mechanism — operator remains safely in the cab throughout
- Adjustable width 900–1800mm — accommodates a wide range of well ring diameters
- Independent grab operation — each grab adjusts independently for uneven or off-centre rings
- External handles — easy manual positioning when required
- Serrated contact pads — positive grip on concrete well rings
- Chain retention system — additional security during lifting
- Dual forklift and HIAB compatibility — versatile mounting options
- Painted bright orange for safety — high-visibility finish for on-site safety compliance
Technical Specifications
| Model |
Ring Range (mm) |
Max Fork Section (mm) |
Capacity (kg) |
Weight (kg) |
C of G (mm) |
| IWRF-1 (H/P) |
900–1800 |
125 × 50 |
2200 |
200 |
900 |
For loads that need moving rather than lifting, see the load moving systems range.
UK Manufactured | LOLER Compliant
This product is designed and manufactured in the UK by Invicta Forks & Attachments, the UK's largest mechanical forklift attachment manufacturer, based in Leeds. Where applicable, this product is supplied with a test certificate and EC Declaration of Conformity. LOLER 1998 thorough examinations are required every 6 months by a competent person after initial certification.
More About This Product
The Invicta Mechanical Well Ring Lifter (Model IWRF) is designed to lift, move and release well rings safely on building sites or within builders yards. Each grab works independently and is fully automatic in operation, adjustable in width to accommodate variable ring diameters from 900mm to 1800mm. The driver remains within the safety of the forklift cab throughout the entire operation. Suitable for both forklift and HIAB-type applications. Manufactured in Leeds by Invicta Forks & Attachments.
Inspection and Maintenance
Inspect regularly with particular attention to all weld points, lifting eyes, pivot points and any signs of deformation or corrosion. Certified for six months from manufacture — thorough examination under LOLER 1998 required every 6 months.
