Long Dee Piling Shackle with Screw Collar Pin – HTLDP
1 / 3

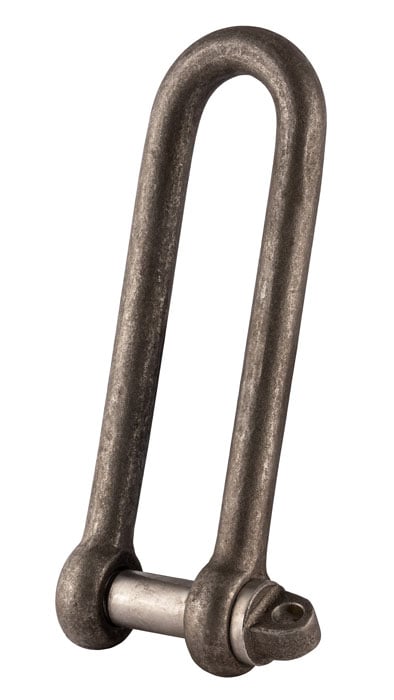

Long Dee Piling Shackle with Screw Collar Pin HTLDP

Part no. HTLDP1
£13.94£11.62Inc VATEx VAT
£11.62 ex VAT£13.94 inc VAT ·
Size: 1T

About this item

  • Long dee piling shackle with screw collar pin, WLL 1t to 5t
  • High tensile steel in self colour finish; MBL 4 times the WLL
  • Marked with CE, WLL, manufacturer ID and traceability code

Product description

The HTLDP long dee piling shackle from GT has an extra-long body with a screw collar pin, so the pin can pass through the handling hole in a steel sheet pile while the body clears the pile profile.

Six sizes cover 1 t to 5 t WLL, with inside lengths from 152.5 mm to 305 mm. High tensile steel, self colour, minimum breaking load four times WLL. For general in-line lifting, see the large dee shackle (HTLD).

Key Features
  • Extra-long body to clear pile profiles
  • Screw collar pin through the pile handling hole
  • High tensile steel, self colour
  • Minimum breaking load 4 x WLL
  • Six sizes, 1 t to 5 t WLL

Specifications

Choose a size above to see its specifications.

Compare all 6 sizes
Code WLL (t) A body diameter B pin diameter C inside width D inside length E eye diameter Weight (kg)
HTLDP1 1 13 16 22 152.5 32 0.55
HTLDP1.5 1.5 16 19 32 203 38 0.95
HTLDP2 2 20 22 38 203 44.5 1.64
HTLDP3 3 22 25 44.5 254 51 2.29
HTLDP3.75 3.75 25 28 51 254 57 3.4
HTLDP5 5 28 32 54 305 63.5 5.05

Dimensions in mm. See our chain and fittings for the rest of the rig.

Material High tensile steel
Finish Self colour
Safety factor Minimum breaking load 4 x WLL
Marking CE, WLL, manufacturer ID, traceability code

Questions and answers

Q: What is a piling shackle?

A: A long dee shackle whose extended body lets the pin go through a pile's handling hole while the body clears the pile.

Q: How do I choose a size?

A: By WLL, then check the pin (B) fits your pile handling hole and the inside length (D) clears the profile.

Q: How often does it need examining?

A: Under LOLER 1998, lifting accessories need a thorough examination by a competent person at least every 6 months, and must be withdrawn after any overload.
