Eichinger Forklift Tipping Skip

Model 2013 | Four-Way Fork Entry | Automatic Roller Release | Heel Pin & Tear-Drop Safety Catch | CE Marked | UKCA Compliant

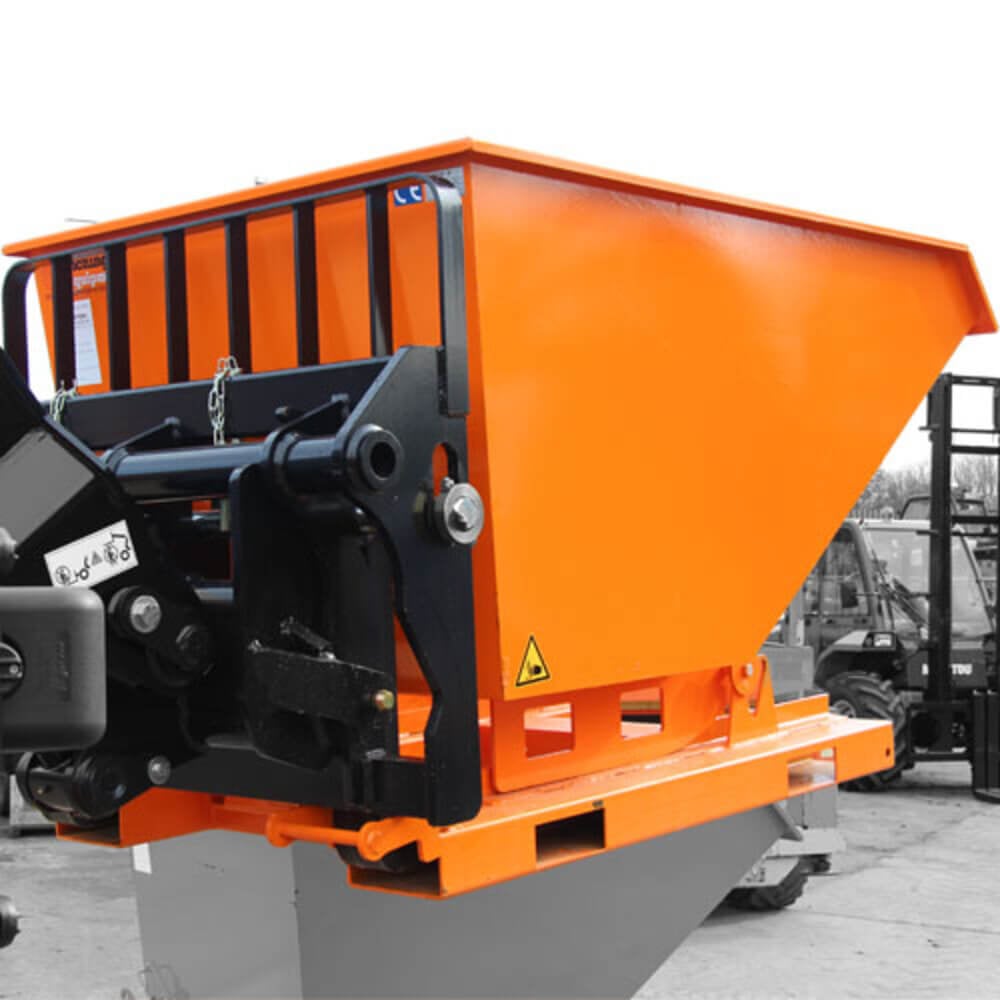

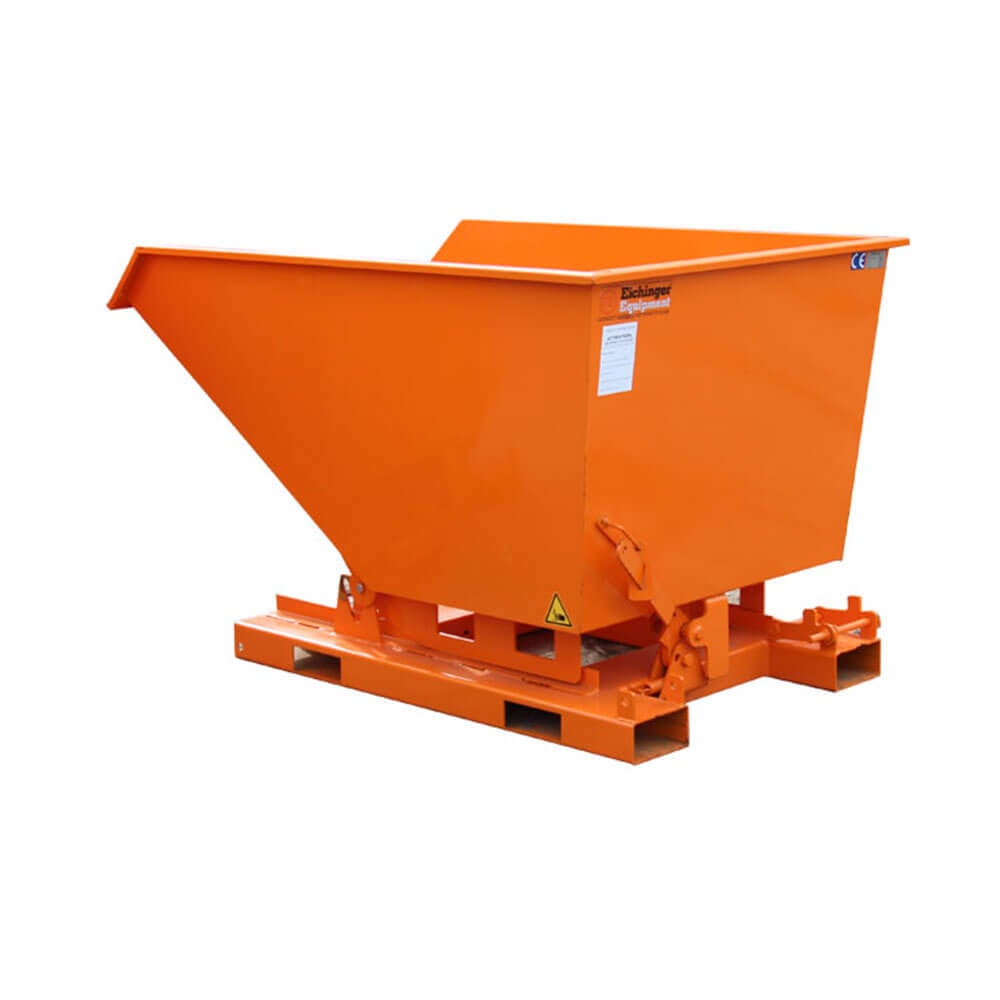

The Eichinger Forklift Tipping Skip (Model 2013) is a heavy-duty tipping skip designed for the safe, efficient movement and disposal of waste materials on construction sites, factories and industrial facilities. Built in Germany by Florian Eichinger GmbH, the 2013 features a high square container with four-way fork pocket entry, allowing the forklift driver to approach and dock from any direction without repositioning the skip. The doubly arranged docking pockets in the massive section frame mean the container can be tipped both in and transverse to the driving direction, providing maximum flexibility on congested sites. A curved pivoting and tipping mechanism ensures an optimum load centre of mass throughout the discharge cycle, preventing sudden weight shifts. The automatic roller release system allows the driver to tip the skip from any position via a cable pull from the driver's seat, keeping all operatives safely in the cab. Every unit is supplied with a fixed heel pin and tear-drop safety catch to prevent accidental discharge during transit. The 3 mm sheet steel construction is oil-tight and water-tight welded with all-round edge reinforcement for maximum durability. Available in four capacities: 500, 750, 1,200 and 1,500 litres.

Technical Specifications

All models: 3 mm sheet steel construction, oil-tight and water-tight welded.

Key Features

• Four-way fork pocket entry — the forklift driver can approach and dock from any direction, eliminating the need to reposition the skip on congested sites
• Multi-directional tipping — doubly arranged docking pockets in the massive section frame allow the skip to be tipped both in and transverse to the driving direction
• Curved pivot mechanism — the high square container with curved pivoting and tipping mechanism ensures an optimum load centre of mass throughout the discharge cycle
• Automatic roller release — roller system with automatic release allows the skip to be tipped from any position via cable pull from the driver's seat
• Fixed heel pin and tear-drop safety catch — prevents accidental discharge during transit, keeping the skip securely locked to the forks at all times
• Oil-tight and water-tight welded construction — 3 mm sheet steel body with welded seams suitable for liquid, wet and general waste
• All-round edge reinforcement — heavy-duty edge profile provides structural rigidity and resistance to impact damage
• Sturdy base frame with run-in recesses — ensures stable, reliable docking every time
• Four capacity options — available in 500L, 750L, 1,200L and 1,500L to suit sites of all scales
• German-engineered construction — manufactured by Florian Eichinger GmbH in Mühlhausen, Germany, producing construction equipment since 1904

Suitable Applications

The 2013 Forklift Tipping Skip is designed for any application where waste, scrap or bulk materials need to be collected, transported and discharged efficiently using a forklift or telehandler. It is commonly used for general waste removal on construction and demolition sites, scrap and offcut collection in factories and warehouses, mixed waste handling on industrial sites, and muck-away operations on building projects. The oil-tight and water-tight construction makes it suitable for liquid and wet waste. The range of capacities from 500 to 1,500 litres means there is a model to suit everything from small residential builds to major infrastructure projects. The 2013 is used extensively across construction, demolition, manufacturing, recycling, logistics and general industry.

How to Use the Forklift Tipping Skip

1. Approach the skip with the forklift and insert forks fully into the fork pockets from any direction. Ensure the heel pins engage and the tear-drop safety catch locks into position.
2. Before filling, check that the safety catch is secure and the skip is firmly locked to the forks.
3. Fill the skip evenly, ensuring the load does not exceed the rated Safe Working Load (SWL) shown on the type plate and is kept below the height of the skip sides.
4. Transport the skip to the discharge area. Avoid sudden braking, sharp turns or jolting movements.
5. Position the skip over the discharge point (e.g. above a waste container, skip lorry or designated dump area).
6. Pull the cable from the driver's seat to release the automatic roller mechanism. The skip will tip forward under the weight of the load.
7. Allow the skip to discharge fully. The roller mechanism will automatically re-engage when the skip returns to the upright position.
8. Check that the safety catch has re-engaged before transporting the empty skip.
9. After use, clean the skip as required. For oil or liquid waste, ensure the welded seams are intact and free of damage.

Warning: Never stand in the discharge zone during tipping operations. Ensure the area is clear of all personnel before operating the cable pull.

Certification and Compliance

This product is CE marked and supplied with a full EC Declaration of Conformity in accordance with the EU Machinery Directive 2006/42/EC. A UKCA certificate is also provided where required for the Great Britain market. Following Brexit, the UK government has confirmed indefinite recognition of CE marking for lifting equipment in Great Britain, meaning businesses can use either UKCA or CE marked accessories provided the equipment is accompanied by a Declaration of Conformity (DoC). The skip is manufactured under a DIN ISO 9001:2015 certified quality management system, and independently tested by TÜV Nord for product and workplace safety (GS — Tested Safety mark). It is built in accordance with the occupational health and safety regulations of the German Berufsgenossenschaften (BG). All lifting equipment used on UK construction sites must comply with the Lifting Operations and Lifting Equipment Regulations 1998 (LOLER) and the Provision and Use of Work Equipment Regulations 1998 (PUWER).

Safety Information

• Never exceed the rated Safe Working Load (SWL) as shown on the type plate for each model.
• Always check that the heel pin is engaged and the tear-drop safety catch is locked before transporting the skip.
• Never stand in the discharge zone during tipping operations. Ensure the area is clear of all personnel.
• Do not operate the cable pull while the forklift is in motion.
• Ensure the load is evenly distributed and does not exceed the height of the skip sides.
• Check the roller mechanism, pivot points and safety catch for wear or damage before each use.
• A risk assessment must be carried out prior to moving or using this equipment.
• Operation only by persons who are familiar with the equipment and have read the operating instructions.
• Ensure the area of use is clear of overhead cables, power lines, or similar hazards that may affect safe use.
• Required PPE: hard hat, safety boots, gloves, and hi-vis vest.
• The type plate must remain present and legible at all times. If defects are found, the equipment must not be used until rectified.

Inspection and Maintenance

The forklift tipping skip must be inspected before each use and undergo a thorough examination at least every 12 months by a competent person in accordance with LOLER 1998. All inspections must be documented and any defects rectified immediately before the equipment is returned to service. Regular cleaning after each use will extend the working life of the skip — pay particular attention to the roller mechanism, pivot points, cable pull system, heel pin and tear-drop safety catch. Check all welded seams for integrity, particularly if the skip is used for liquid or wet waste. Lubricate moving parts as recommended in the operating manual.
