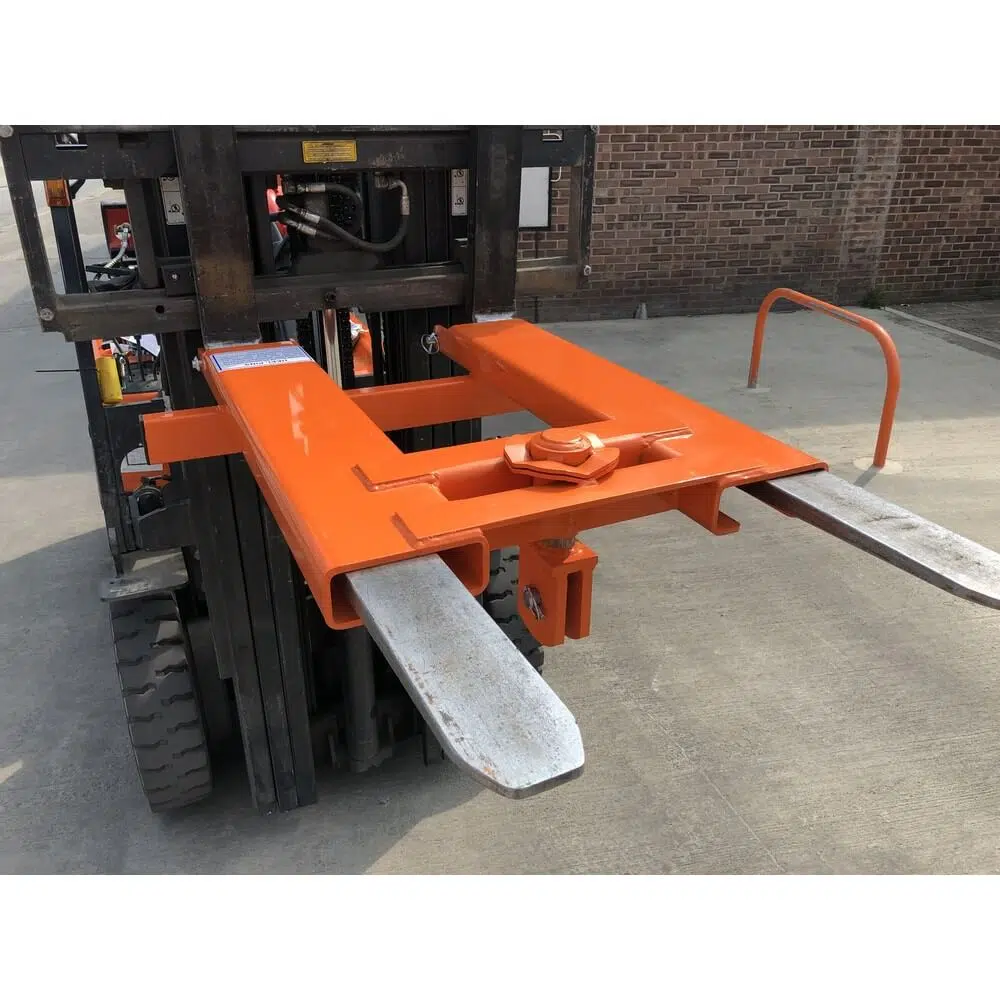

The Invicta Locating Yoke (Model ILY-1) is designed for use in conjunction with the Mechanical Scissor Grab (ISG-5 or ISG-6). The yoke reduces the potential of a swinging load and, with its unique locating mechanism, allows accurate positioning of block packs at 90-degree centres. Rated at 2500kg with a 750mm load centre; manufactured in Leeds by Invicta Forks & Attachments.
Key Features
- Precision block positioning — unique locating mechanism allows accurate placement at 90-degree centres
- Anti-swing design — reduces load swing during transit for safer handling
- Compatible with ISG grabs — designed for use with the ISG-5 and ISG-6 Mechanical Scissor Grabs
- Secure fork attachment — zinc plated heel pins for safe attachment to truck
Technical Specifications
| Model |
Capacity (kg) |
Load Centre (mm) |
Weight (kg) |
C of G (mm) |
| ILY-1 |
2500 |
750 |
35 |
400 |
Maximum fork section 150 x 50mm at 525mm centres. For use with ISG-5 and ISG-6 scissor grabs.
UK Manufactured | LOLER Compliant
This product is designed and manufactured in the UK by Invicta Forks & Attachments, the UK's largest mechanical forklift attachment manufacturer, based in Leeds. All standard items are held in stock for immediate dispatch. Where applicable, this product is supplied with a test certificate and EC Declaration of Conformity. LOLER 1998 thorough examinations are required every 6 months by a competent person after initial certification.
Suitable Applications
The ILY is essential for block laying operations on construction sites and in builders merchants' yards where block packs need to be positioned accurately and without swinging. Used in conjunction with the ISG-5 or ISG-6 scissor grab for lifting and placing block packs.
Attachments are chosen by load shape: drums, bulk bags and banded packs each need a different one, and every attachment moves the load centre forward and derates the truck.
How to Use the Locating Yoke
- Position forks and remove heel pins.
- Drive forks into pockets and insert heel pins.
- Insert the lifting pin from the yoke through the lifting eye of the scissor grab.
- Proceed to lift and position block packs as required.
Warning:
Do not shock load. Ensure heel pins are correctly fitted. Use only with compatible scissor grabs.
Safety Information
- Ensure heel pins are correctly fitted.
- Do not shock load.
- Do not exceed the 2500kg safe working load.
Inspection and Maintenance
Inspect weekly — focus on weld points, fork pockets, heel pins and the locating mechanism. Certified for twelve months from manufacture.
Frequently Asked Questions
Q: Do I need a locating yoke?
The yoke is not essential for the scissor grab to operate, but it significantly improves safety by reducing load swing and allows precise 90-degree positioning of block packs.
