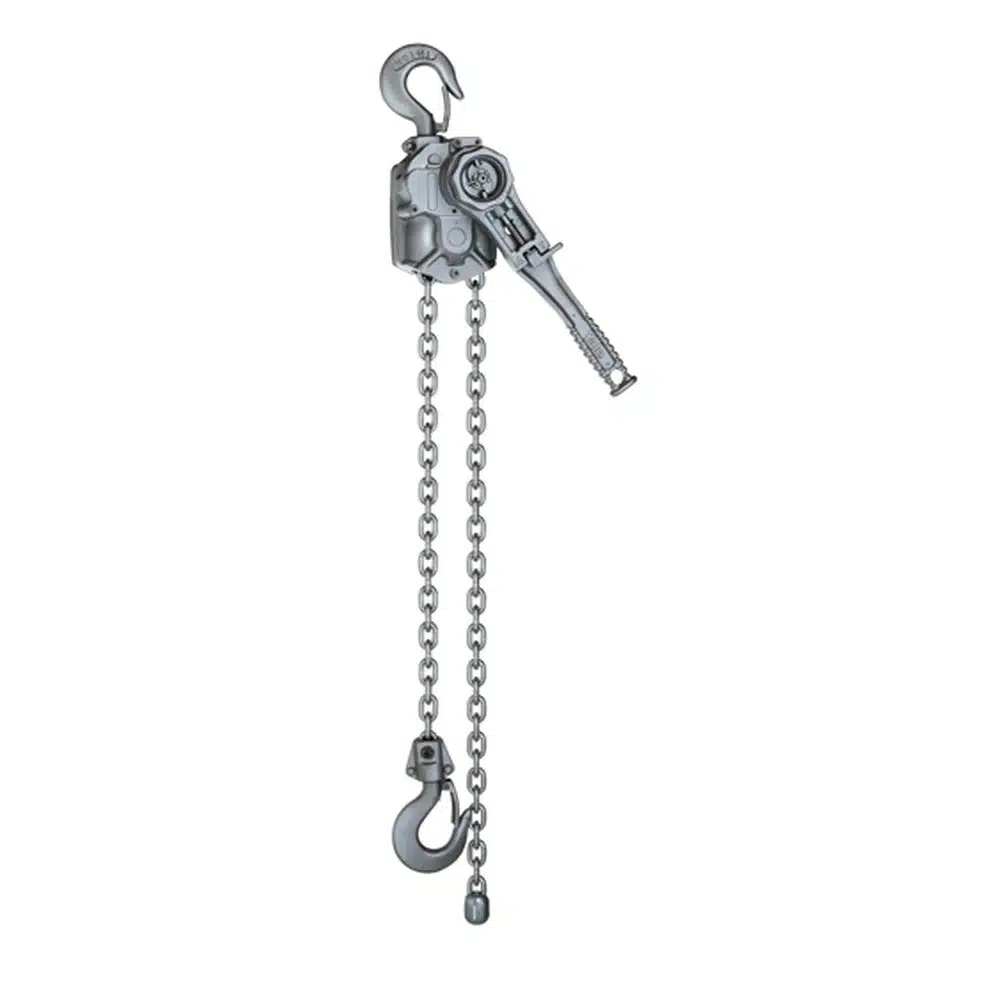

The Yale AL is a lightweight aluminium ratchet lever hoist for technicians and engineers who carry their equipment across jobs — with the enclosed housing, hand lever and hand wheel all manufactured from high-quality aluminium, it combines low own weight with reliable performance, a hoist that should not be missing from any service truck. Precise needle bearings keep operating effort low, and a standard free-chaining device lets you quickly attach the load or pull chain through the hoist in either direction.
Key Features
- Aluminium housing, hand lever and hand wheel: All key external components manufactured from high-quality aluminium for low own weight — a significant advantage when the hoist needs to be carried over longer distances.
- Low effort on hand lever: Precise needle bearings inside the gearbox keep operating effort low — just 20 daN at WLL for the 750 kg, 28 daN for the 3,000 kg.
- Standard free-chaining device: Quickly attach the load or pull the chain through the hoist in both directions.
- Cast-in chain guide: The chain guide is cast directly into the body to ensure faultless chain movement under load.
- Alloyed steel link chain, zinc-plated: Load chain in accordance with national and international standards.
Technical Specifications
| Model |
Article No. |
Capacity (kg) |
Chain Falls |
Chain (d × p, mm) |
Lift per Lever Turn (mm) |
Handle Pull at WLL (daN) |
Weight at 1.5 m Lift (kg) |
| AL 750 |
N02041251 |
750 |
1 |
6.3 × 19.1 (T) |
30 |
20 |
6.4 |
| AL 1000 |
N02041252 |
1,000 |
1 |
6.3 × 19.1 (T) |
30 |
22 |
6.6 |
| AL 1500 |
N02041253 |
1,500 |
1 |
7.1 × 21.2 (T) |
16 |
21 |
10.0 |
| AL 3000 |
N02041254 |
3,000 |
1 |
10 × 30.2 (T) |
14 |
28 |
18.0 |
All variants supplied with 1.5 m standard chain length.
CE & UKCA Marked | EN 12195 Approved | German Engineered
Yale is part of the Columbus McKinnon group. CE marked (EU Machinery Directive 2006/42/EC) and UKCA marked. All ratchet lever hoists with a capacity exceeding 750 kg can be used for load attachment in accordance with EN 12195. Supplied with Declaration of Conformity. LOLER 1998 thorough examinations are required every 12 months by a competent person.
Suitable Applications
The Yale AL is the universal service-truck ratchet lever hoist. Typical applications include vehicle and machinery maintenance, light steel fabrication, plant servicing, agricultural maintenance, building services installation, and any application where a robust manual lever hoist is needed but the weight of a cast-iron C85/D85 isn't justified.
