The Multi-Sec MP-13 is a modular lifting beam rated to 13 tonnes that can be rigged three ways: as a centre point lift, a spreader beam or a semi-spreader beam, with no change of equipment.

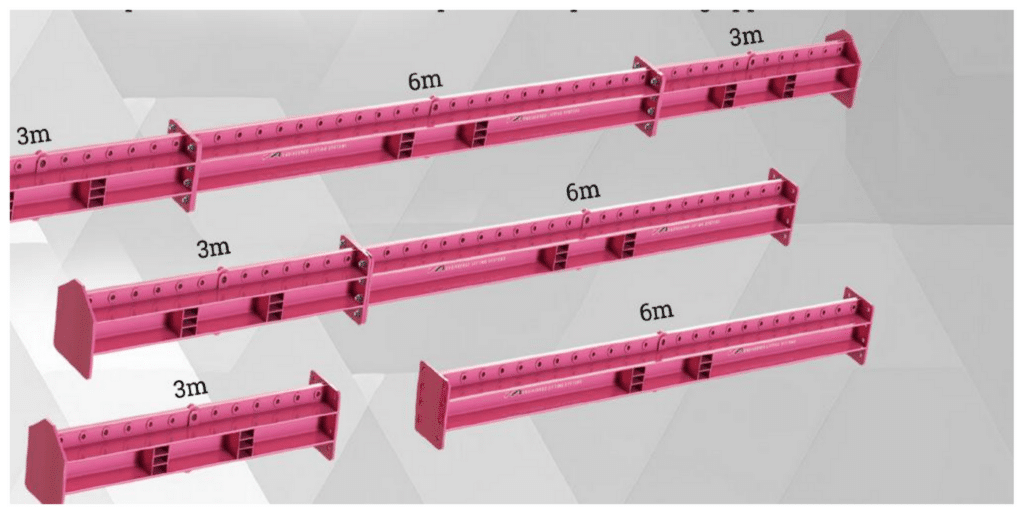

Choose a 3 m or 6 m beam, and bolt beams together for spans up to 12 m.
It is designed, made and tested in the UK, DNV Type Approved to DNV-ST-0378, and proof tested before despatch.
Ask us for the Multi-Sec Range Brochure 2026 and Assembly Quick Guide.
You may also need: header slings, shackles and bottom rigging rated for the lift.
Always read the manufacturer’s instructions before use.
Centre point lift: the beam hangs from one top point and works in bending, like a lifting beam. This keeps headroom to a minimum and supports a symmetrical load on several lower points.
Spreader beam: two angled top slings connect to top points that line up with the bottom points. Several spans are available from the same hardware for a standard two-point lift.
Semi-spreader beam: the top points are offset from the bottom points, giving a low-headroom lift for loads picked at the ends or at several points along the beam.
In spreader and semi-spreader modes the top (header) slings must not exceed 30° to vertical. Capacity depends on the top and bottom spans used.
| Build | Span | Capacity |
|---|---|---|
| Single beam | 3 m or 6 m | 13 t |
| Two beams (3 m + 6 m) | 9 m | 13 t to 7 t |
| Three beams (3 m + 6 m + 3 m) | 12 m | 13 t to 3 t |
Capacity in the longer builds varies with the top and bottom spans. Send us both and we will confirm the rated capacity for your lift.
For heavier loads, see the 25 t MP-25. Where lift points are needed in two directions, our lifting frames may suit better.
A: Between 13 t and 7 t, depending on the top and bottom spans. The configuration charts are in the range brochure, or send us your spans and we will confirm.
A: No. The same beam assembly rigs as a centre point lift, spreader beam or semi-spreader beam.
A: Multi-Sec systems are DNV Type Approved to DNV-ST-0378, the standard for offshore and platform lifting appliances.
Loading your basket…
Delivery calculated at checkout.
CheckoutCard, Apple Pay, Pay by bank, proforma or 30-day account
Multi-Sec beams need a delivery quote before they can be ordered. Tell us where it's going and we'll come back with your quote the same working day.

Multisec is a UK engineering company that designs, manufactures and tests engineered lifting systems. It is best known for its modular spreader beams. Its equipment is used in offshore wind, marine, ports, infrastructure and heavy engineering.
