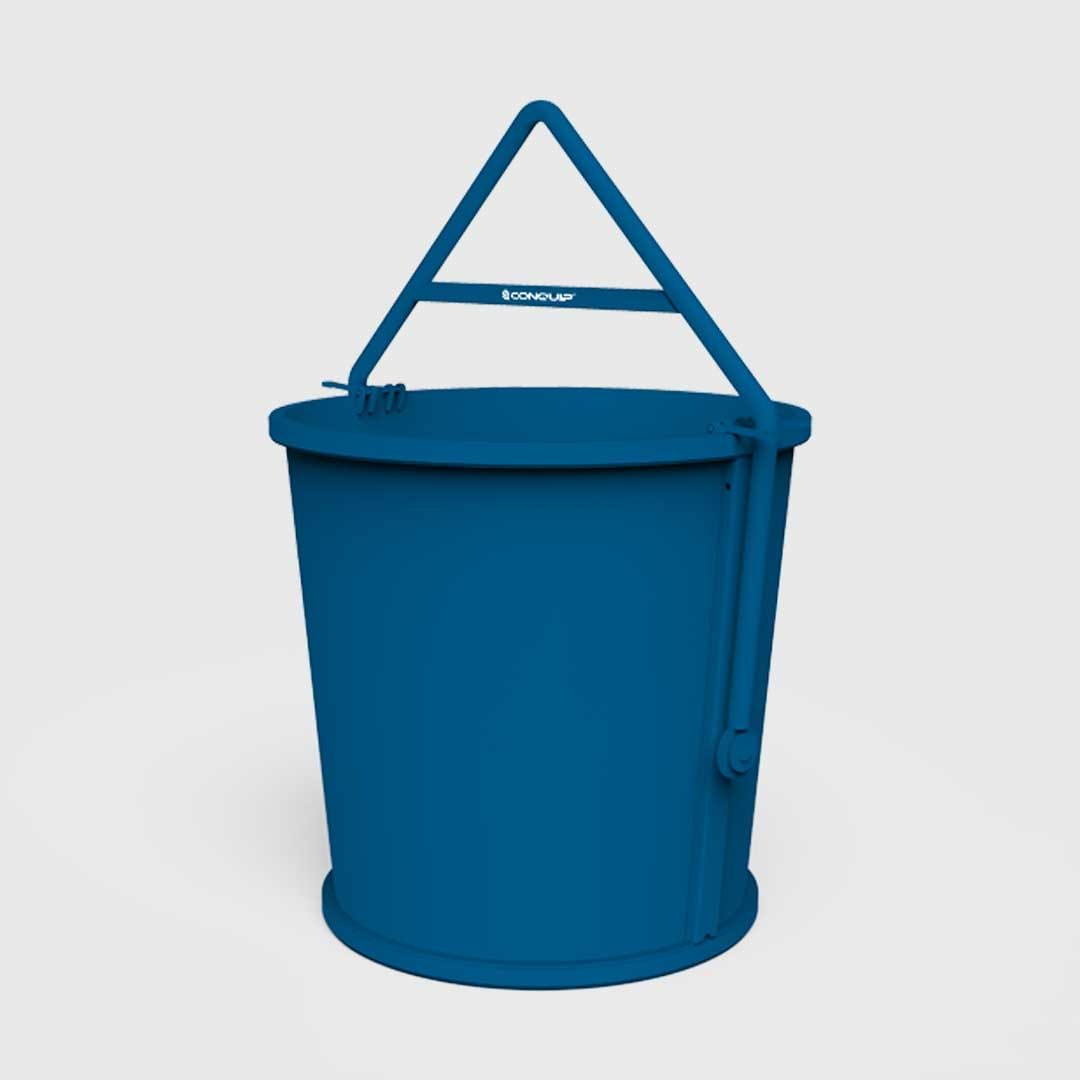

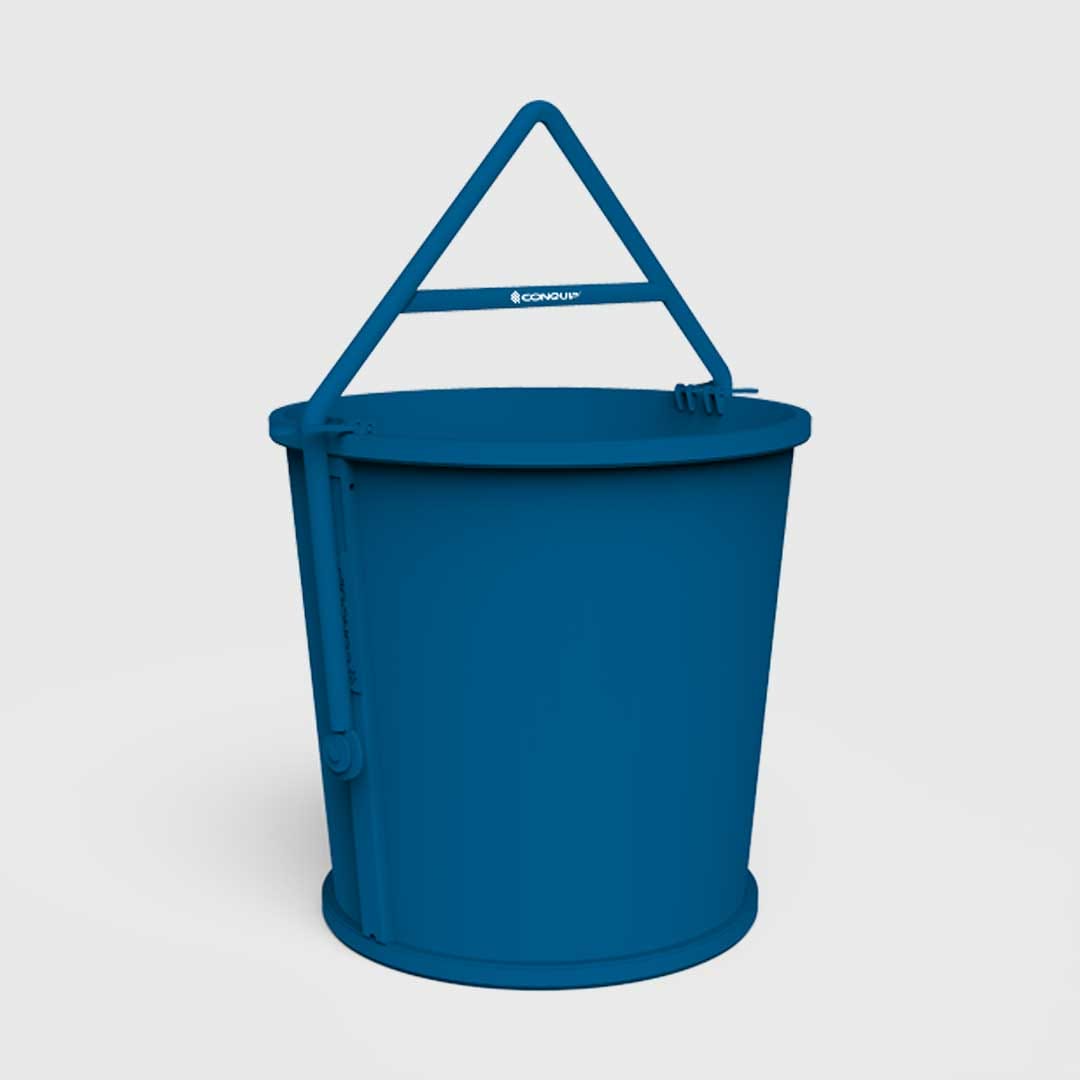

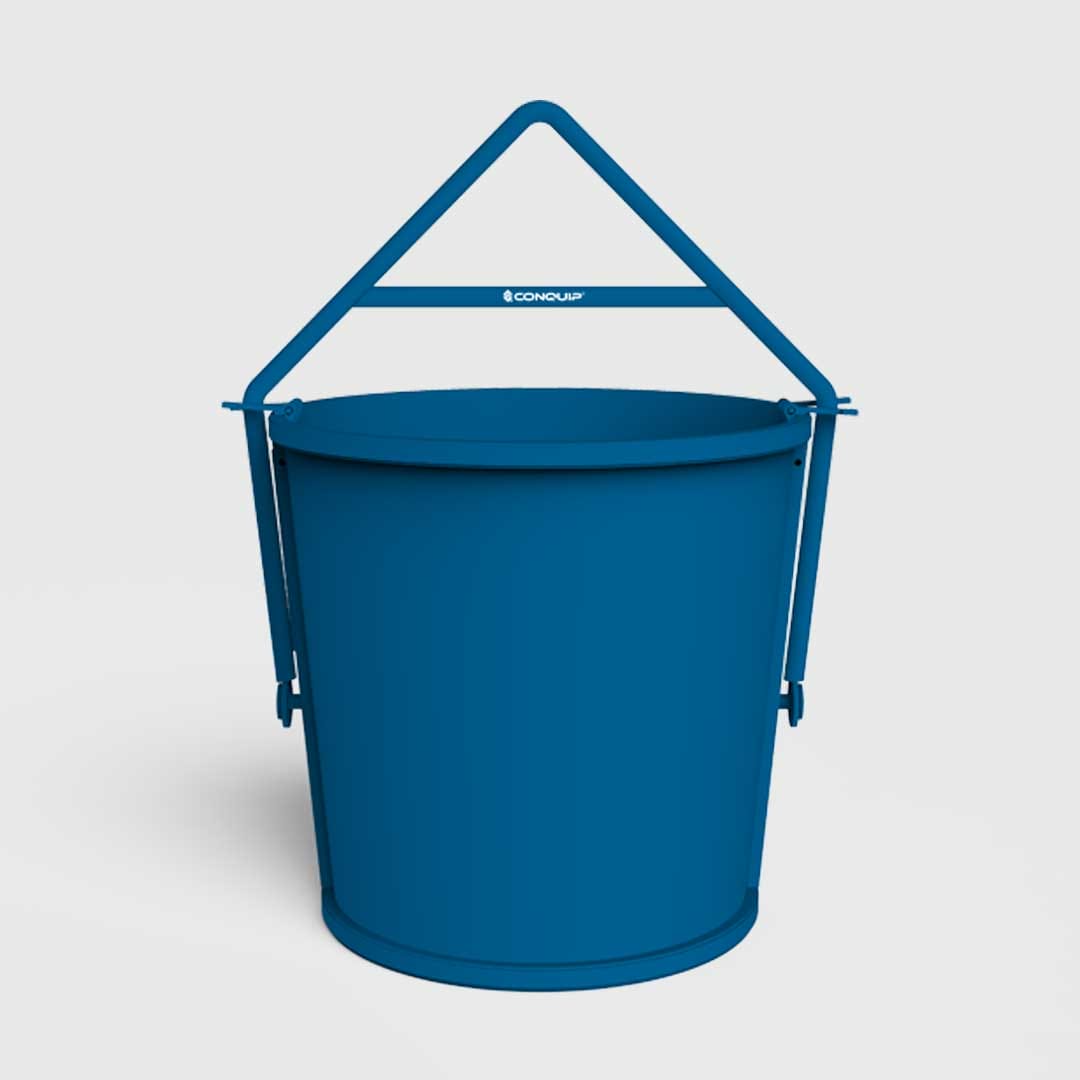

The Conquip Circular Muck Skip is a traditional craneable skip for general muck and waste removal. Two safety catches prevent accidental tipping during lifting; once disengaged by hand, the skip self-tips when lifted thanks to the bale arm geometry, allowing automatic discharge without an operative needing to be in the danger zone.
Key Features
- Two safety catches prevent accidental tipping during lifting and transport.
- Self-tipping bale arm: once catches are released, the skip empties automatically when lifted.
- Robust circular design with no internal corners that can trap material.
- Available in five capacities from 100 to 1000 litres.
- Lightweight smaller sizes suit fit-out and refurbishment work.
- Larger sizes handle general site clearance and muck-away.
Technical Specifications
| Product Code |
Capacity (litres) |
Width (mm) |
Height (mm) |
Height with Bale Arm (mm) |
Weight (kg) |
WLL (kg) |
| CA109-00100 |
100 |
600 |
580 |
920 |
34 |
200 |
| CA109-00250 |
250 |
790 |
760 |
1230 |
70 |
500 |
| CA109-00500 |
500 |
1020 |
970 |
1620 |
105 |
1000 |
| CA109-00750 |
750 |
1130 |
1080 |
1810 |
150 |
1500 |
| CA109-01000 |
1000 |
1350 |
1170 |
1940 |
200 |
2000 |
WLL = Working Load Limit. The Circular Muck Skip is round, so width is the diameter and length is the same as width.
Twin safety catches
Self-tipping bale arm | UK manufactured | Available 100 to 1000 litres
Suitable Applications
The Circular Muck Skip is the traditional choice for general waste, muck and rubble removal across construction, fit-out and refurbishment sites. Smaller 100 and 250 litre skips suit interior strip-out and finishing work where access is limited. The 500, 750 and 1000 litre sizes cover wider site clearance, muck-away from groundworks, and general waste removal between levels by crane.
Waste skips tip. Where a pour must be placed accurately through a controlled gate, a concrete skip is the right tool. Check the loaded weight against the crane chart rather than sizing on volume.
How to Use
- Position the skip on a stable, level surface with the safety catches engaged.
- Load evenly within the published capacity and WLL.
- Manually disengage both safety catches when ready to lift and tip.
- Attach the crane hook to the bale arm lifting point.
- The slinger and banksman confirm the lift and guide it to the discharge area.
- Once positioned over the discharge zone clear of personnel, the skip self-tips as the bale arm pivots through its centre of gravity.
- Return the skip to the loading area and re-engage both safety catches before refilling.
Warning:
Always re-engage both safety catches between lifts to prevent accidental tipping. Do not lift over personnel. Never exceed the published WLL or capacity for the size in use.
Safety Information
- Inspect the skip body, bale arm, lifting point, safety catches and shackles before each lift.
- The crane operator, slinger and banksman must hold appropriate certification.
- Always re-engage both safety catches between lifts.
- Keep ground personnel clear of the discharge zone during emptying.
- Do not exceed the published WLL or capacity for the size in use.
- The skip self-tips by design once catches are released — confirm the discharge area is clear before lifting.
Frequently Asked Questions
Q: How does the self-tipping mechanism work?
Once both safety catches are manually disengaged, the bale arm geometry causes the skip to pivot and self-tip when lifted by the crane. The centre of gravity moves outside the lift point and the skip rotates to discharge.
Q: Can I tip part loads?
The Circular Muck Skip self-tips fully each time it is lifted with the catches released. For applications where part loads need to be lifted and tipped, the Boat Skip or Heavy-Duty Boat Skip range with dog-bone or hook-and-latch release is more suitable.
Q: What size should I choose?
The 100 and 250 litre sizes are well-suited to interior strip-out and finishing trades. The 500, 750 and 1000 litre sizes cover general site clearance and muck-away work where larger crane access is available.
Q: Do I need a slinger and banksman?
Yes. Both are required to check the lift and guide it to the discharge area, in line with standard lifting operation procedures.
